Product detail

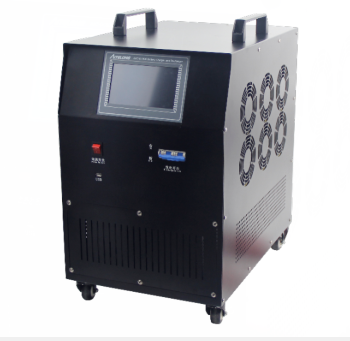

SAT-DC500 Series Battery Charge and Discharge

SAT-DC500 Series Battery Charge and Discharge Key Feature 1. 5 in 1: Charge, discharge, cell monitor, online monitor, and battery activator. 2. Individual cell wireless monitor function, each module can monitor 12 single cells. 3. USB port, 2G large data storage space. 4. Dual-CPU collaborative working, guarantee the security and accuracy during testing. 5. Can suspend or edit parameters during discharging, instead of stopping testing.

SAT-DC500

SAT-DC500 Series Battery Charge and Discharge

SAT-DC500 Series Battery Charge and Discharge
Key Feature
1. 5 in 1: Charge, discharge, cell monitor, online monitor, and battery activator.
2. Individual cell wireless monitor function, each module can monitor 12 single cells.
3. USB port, 2G large data storage space.
4. Dual-CPU collaborative working, guarantee the security and accuracy during testing.
5. Can suspend or edit parameters during discharging, instead of stopping testing.

Contact Aitelong →

SAT-DC500 Series Battery Charge and Discharge

Key Feature

1. 5 in 1: Charge, discharge, cell monitor, online monitor, and battery activator.

2. Individual cell wireless monitor function, each module can monitor 12 single cells.

3. USB port, 2G large data storage space.

4. Dual-CPU collaborative working, guarantee the security and accuracy during testing.

5. Can suspend or edit parameters during discharging, instead of stopping testing.

AITELONG Support

Product & Project Support

Support for product selection, documentation and field use.

Product Information

Specifications and product information for model evaluation.

Application Selection

Configuration guidance based on your network, battery system or test objective.

Technical Support

Responsive communication for operation, documentation and after-sales requirements.

Backup PowerSAT-AC

SAT-AC Battery Conductance Tester

SAT-AC Battery Conductance TesterSAT-AC Battery Conductance Tester is a multi-function and portable digital instrument to test lead acid stationary battery running condition and parameters quickly and precisely. It can display and record many k...

View Product

Backup PowerSAT-AR

SAT-AR Battery Internal Resistance Tester

SAT-AR Battery Internal Resistance Tester Internationally, resistance test is widely applied in daily battery maintenance instead of voltage check, because resistance is important parameter to test battery quickly and accurately worldwide.SAT-AR...

View Product

Backup PowerSAT-DC200

SAT-DC200 Series Battery Charger

SAT-DC200 Series Battery Charger Key Features 1. Intelligent 3 degree charging, auto switch for equalized/floating charging, constant current/voltage. 2. Portable design, small volume, light weight ,easy to move. 3. Upload the test d...

View Product

Backup PowerSAT-IA

SAT-IA Intelligent Battery Activator

SAT-IAIntelligentBattery Activator Function 1. Activation function 2. Check discharge function 3. Charge function 4. Real-time data memory 5. Data upload and export 6. Automatic protection function

View Product

Available Battery Group	48V	110V	220V	380V
Charging voltage	40-60V	95-150v	190-300V	350-450V
Charging current	10-150A	1-80A	1-40A	1-20A
Discharging voltage	10-60V	85-135V	80-270V	300-460V
Discharging current	0-150A	0-200A	0-100A	0-60A
Current Resolution	1%
Voltage Resolution	0.5%
Individual Cell Voltage Resolution	0.2%
Individual Cell Voltage	0.5V~16V(Resolution:1mV)
Charge and Discharging Time	0~99H59Min
Power Supply	AC:220V
Cooling Mode	Forced air cooling
Package	Aluminum alloy trolley case& outer wooden case
Temperature	Operating temperature: -5~50℃; storage temperature: -40~70℃
Dimension	Accord to specific model
