Product detail

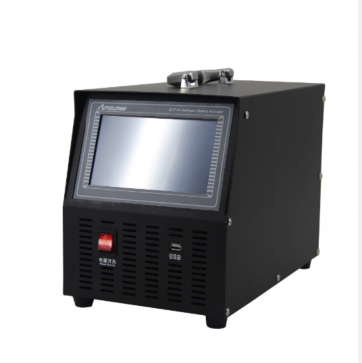

SAT-IA Intelligent Battery Activator

SAT-IAIntelligentBattery Activator Function 1. Activation function 2. Check discharge function 3. Charge function 4. Real-time data memory 5. Data upload and export 6. Automatic protection function

SAT-IA

SAT-IA Intelligent Battery Activator

SAT-IAIntelligentBattery Activator
Function
1. Activation function
2. Check discharge function
3. Charge function
4. Real-time data memory
5. Data upload and export
6. Automatic protection function

Contact Aitelong →

SAT-IAIntelligentBattery Activator

Function

1. Activation function

2. Check discharge function

3. Charge function

4. Real-time data memory

5. Data upload and export

6. Automatic protection function

AITELONG Support

Product & Project Support

Support for product selection, documentation and field use.

Product Information

Specifications and product information for model evaluation.

Application Selection

Configuration guidance based on your network, battery system or test objective.

Technical Support

Responsive communication for operation, documentation and after-sales requirements.

Backup PowerSAT-AC

SAT-AC Battery Conductance Tester

SAT-AC Battery Conductance TesterSAT-AC Battery Conductance Tester is a multi-function and portable digital instrument to test lead acid stationary battery running condition and parameters quickly and precisely. It can display and record many k...

View Product

Backup PowerSAT-AR

SAT-AR Battery Internal Resistance Tester

SAT-AR Battery Internal Resistance Tester Internationally, resistance test is widely applied in daily battery maintenance instead of voltage check, because resistance is important parameter to test battery quickly and accurately worldwide.SAT-AR...

View Product

Backup PowerSAT-DC200

SAT-DC200 Series Battery Charger

SAT-DC200 Series Battery Charger Key Features 1. Intelligent 3 degree charging, auto switch for equalized/floating charging, constant current/voltage. 2. Portable design, small volume, light weight ,easy to move. 3. Upload the test d...

View Product

Backup PowerSAT-DC500

SAT-DC500 Series Battery Charge and Discharge

SAT-DC500 Series Battery Charge and DischargeKey Feature1. 5 in 1: Charge, discharge, cell monitor, online monitor, and battery activator.2. Individual cell wireless monitor function, each module can monitor 12 single cells.3. USB port...

View Product

Measurement Type of Cell Voltage	2V/6V/12V;
Measurement Range of Cell Voltage	2V:0～3V; 6V: 4-8V; 12V:4-15V
Resolution of Cell Voltage	2V: 0.001V; 6V: 0.01V; 12V:0.01V
Voltage Testing Accuracy	0.5%
Working Range of Charge and Discharge Current	2A~100A
Control Accuracy of Charge and Discharge Current	0.1A
Current Testing Accuracy	1%
Battery Capacity Check Range	2V:20-1000Ah;6V:20-200Ah:12V:20-300Ah;
Working Voltage	AC 220±15%
Communication Mode	RS232 communication and USB communication
Cooling Mode	Refrigeration by blasting
Working Environment	Temperature: 0℃～40℃ Humidity: 20%～80%RH
Storage Condition	-20℃～70℃ package and storage
Display Mode	LCD with High-brightness
External Dimensions(W×H×L)	450mm×190mm×585mm
Weight	11kg
Carry Method	Portable type, move with roller wheel
