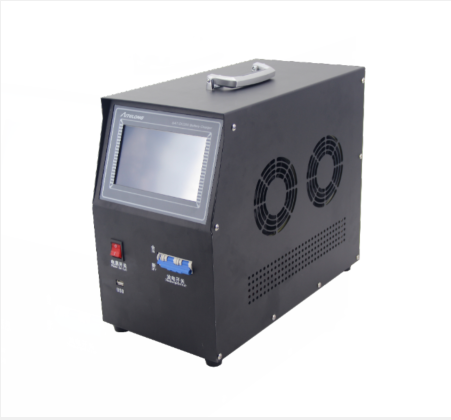

SAT-DC200
1. Intelligent 3 degree charging, auto switch for equalized/floating charging, constant current/voltage.
Contact Aitelong →SAT-CD Series Battery Charge Tester
Key Feature
1. Intelligent 3 degree charging, auto switch for equalized/floating charging, constant current/voltage.
2. Portable design, small volume, light weight ,easy to move.
3. Upload the test data to PC to generate test report, easily check the battery performance.
4. USB port, 2G large data storage space.
1. Daily maintenance and management of batteries
2. Inspection, acceptance, and installation of newly received batteries
3. To provide a basis for scrapping batteries
4. Quality control of battery manufacturers
| Model | SAT-CD 48/10 | SAT-CD 48/20 | SAT-CD 110/04 | SAT-CD 220/04 | SAT-CD 380/01 |
| Battery Group Voltage Range | 40-60V | 95-150V | 190V-300V | 350V-450V | |
| Charging Current | 100A | 200A | 40A | 40A | 10A |
| Control precision | Charge current ≤ ±1%; group terminal voltage ≤ ±0.1%; cell voltage ≤ ±0.1% | ||||
| PC communication | RS485 interface, USB interface | ||||
| Data storage capacity | Built-in SD card with a capacity of 8G and the USB flash drive with a capacity of 16G | ||||
| Work Environment | |||||
| Heat dissipation | Forced air cooling | ||||
| Temperature | Working rage: -5-50℃ Storage temperature: -40-70℃ | ||||
| Humidity | Relative humidity 0-90% (40±2℃) | ||||
| Working Power Supply | |||||
| Voltage | Power supply: single-phase AC220V (-20%-+30%), | ||||
| frequency: 45-65Hz; charging power supply: refer to nameplate parameters or case label | |||||
| Electric strength test | Input-housing: 2200Vdc 1min; Input-output: 2200Vdc 1min; Output-housing: 700Vdc 1min | ||||
Remark: Accept customization service. The charge current range from 40A to 300A. Please contact with for more details.
