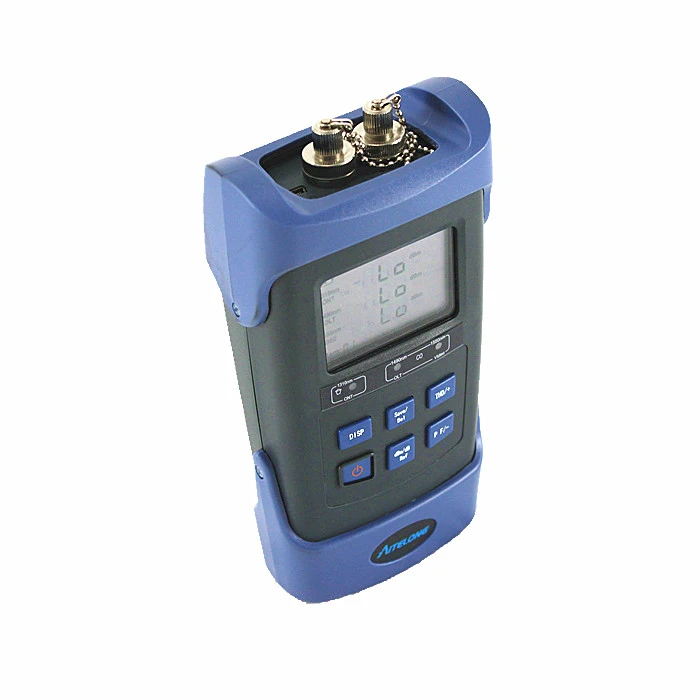

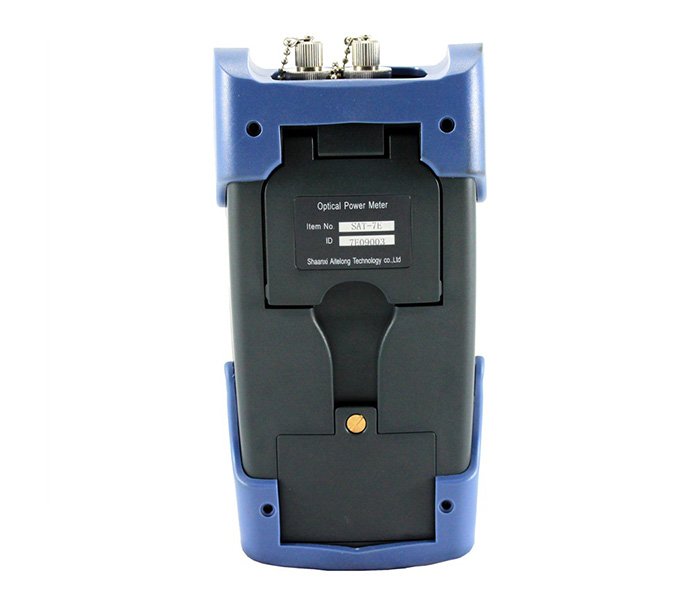

SAT-7E PON Optical Power Meter
SAT-7E PON power meteris a special tester to test FTTx/PON passive optical network, it can synchronously measure voice, data and video signal on BPON/EPON/GPON framework. It also can set the power threshold and indicate the pass, alarm and fail of every wavelength. Key FeaturesTest power value of 1490nm, 1550nm and 1310nm in PON system at the same timeTest burst mode of 1310nm up wavelengthDual-port and pass-through design, it guarantees communication from OLT to ONT during test. Ten groups of threshold value, three indicators display the optical path state.Transfer data to PC via USB interfaceStore 99 records, and records can be viewed and deleted.Set threshold, upload data and calibrate wavelength via software.Auto power off, power off time from 5 to 60 minutes ApplicationsFTTx/PON open: test all PON signal during opening, and match the network standard.FTTx/PON maintenance: test the transmission performance in daily maintenance.Estimate power value of any position in network from OLT to ONT.
SAT-7E
SAT-7E PON Optical Power Meter
SAT-7E PON power meteris a special tester to test FTTx/PON passive optical network, it can synchronously measure voice, data and video signal on BPON/EPON/GPON framework. It also can set the power threshold and indicate the pass, alarm and fail of every wavelength.
Key FeaturesTest power value of 1490nm, 1550nm and 1310nm in PON system at the same timeTest burst mode of 1310nm up wavelengthDual-port and pass-through design, it guarantees communication from OLT to ONT during test. Ten groups of threshold value, three indicators display the optical path state.Transfer data to PC via USB interfaceStore 99 records, and records can be viewed and deleted.Set threshold, upload data and calibrate wavelength via software.Auto power off, power off time from 5 to 60 minutes
ApplicationsFTTx/PON open: test all PON signal during opening, and match the network standard.FTTx/PON maintenance: test the transmission performance in daily maintenance.Estimate power value of any position in network from OLT to ONT.
SAT-7E PON power meteris a special tester to test FTTx/PON passive optical network, it can synchronously measure voice, data and video signal on BPON/EPON/GPON framework. It also can set the power threshold and indicate the pass, alarm and fail of every wavelength.
Key Features
Test power value of 1490nm, 1550nm and 1310nm in PON system at the same time
Test burst mode of 1310nm up wavelength

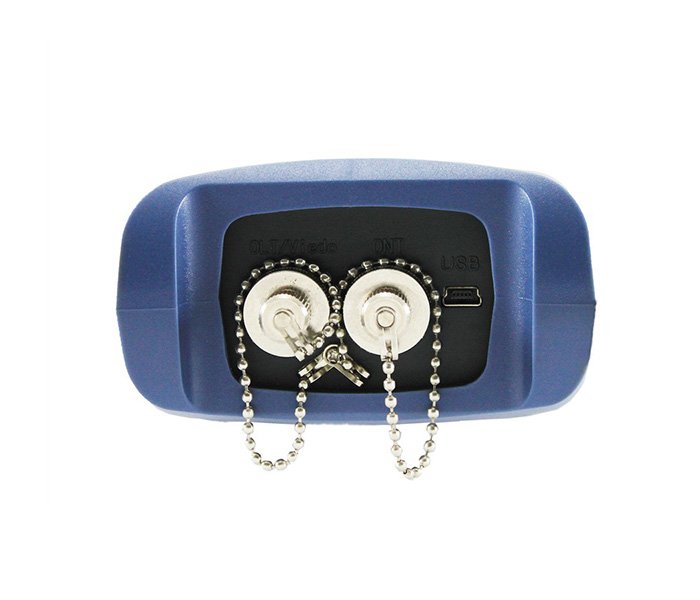

Dual-port and pass-through design, it guarantees communication from OLT to ONT during test.
Ten groups of threshold value, three indicators display the optical path state.
Transfer data to PC via USB interface
Store 99 records, and records can be viewed and deleted.
Set threshold, upload data and calibrate wavelength via software.
Auto power off, power off time from 5 to 60 minutes

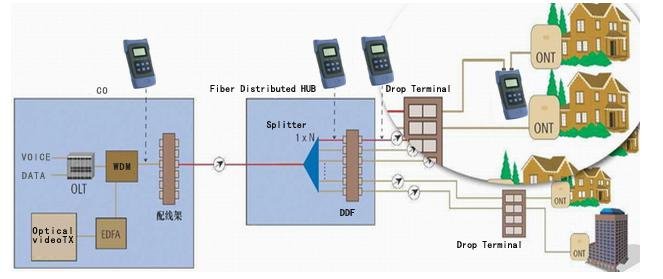

Applications
FTTx/PON open: test all PON signal during opening, and match the network standard.
FTTx/PON maintenance: test the transmission performance in daily maintenance.
Estimate power value of any position in network from OLT to ONT.
Calibrate Wavelength | 1310nm Up | 1490nm Down | 1550nm Down |
Pass Band (nm) | 1260~1360 | 1470~1505 | 1535~1570 |
Detection Range (dBm) | -40~+10 | -40~+10 | -40~+25 |
Isolation of 1310nm (dB) | - | >40 | >40 |
Isolation of 1490nm (dB) | >40 | - | >30 |
Isolation of 1550nm (dB) | >40 | >40 | - |
Accuracy of Measurement | |||
Power Uncertainty (dB) | ±0.5 | ||
PDL Polarization Dependent Loss (dB) | <±0.25 | ||
Linearity(dB) | ±0.1 | ||
Through Insertion Loss(dB) | <1.5 | ||
General Specifications | |||
Display | LCD:41/2 | ||
Unit | dB/dBm | ||
Resolution | 0.1dB | ||
Power Supply | 7.2V Ni-MH rechargeable battery
| ||
Optical Fiber Type | SM | ||
Operating Temperature | -10~50℃ | ||
Storage Temperature | -40~70℃ | ||
Dimension (mm) | L× H× W: 55×95×190
| ||
It is only for reference. The actual accessories and quantity are according to demand.
No. | Item | Qty. |
1 | SAT-7E PON Optical power meter | 1 set |
2 | User Manual | 1 copy |
3 | Attached disk | 1 pc |
4 | Qualified Certificate of products/Warranty Card | 1 pc |
5 | Packing List | 1 pc |
6 | 7.2V Rechargeable lithium battery (Built-in) | 1 set |
7 | Data line | 1 wire |
8 | Power supply adapter | 1 pc |
9 | ST, SC, FC adaptor (FC is on machine) | 2 pcs per type |
10 | Soft Portable bag | 1 pc |
