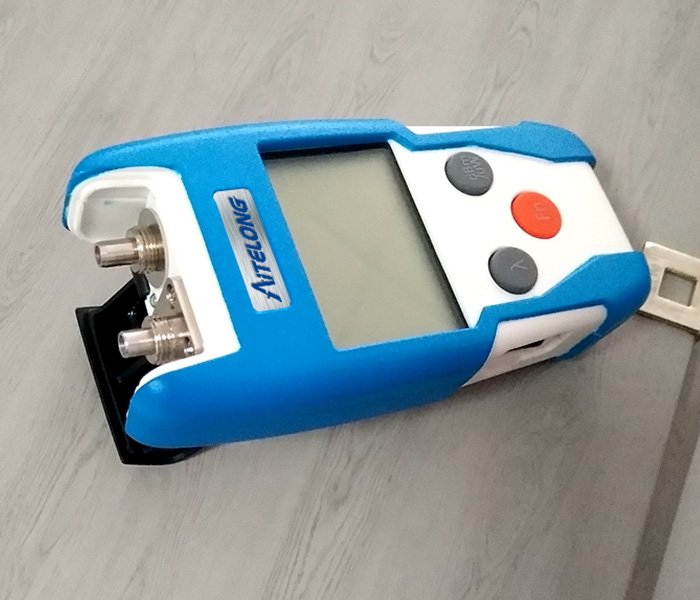

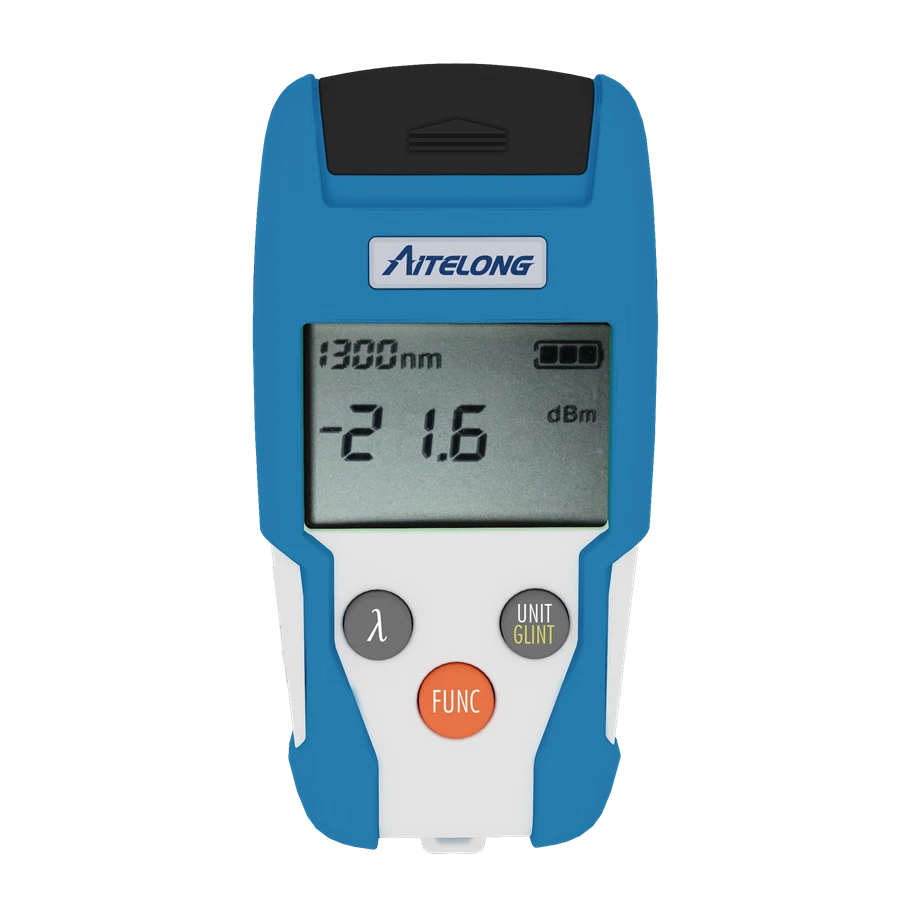

SAT-4EX Optical Power Meter

LED LightWide measurement range, High resolutionSM or MM applications2.5mm universal connector850/1300/1310/1490/1550/1625nmAuto power off (can be cancelled)One-year warranty and three-year recommended calibration interval.

SAT-4EX

SAT-4EX Optical Power Meter

Contact Aitelong →

LED Light

Wide measurement range, High resolution

SM or MM applications

2.5mm universal connector

850/1300/1310/1490/1550/1625nm

Auto power off (can be cancelled)

One-year warranty and three-year recommended calibration interval.

AITELONG Support

Product & Project Support

Support for product selection, documentation and field use.

Product Information

Specifications and product information for model evaluation.

Application Selection

Configuration guidance based on your network, battery system or test objective.

Technical Support

Responsive communication for operation, documentation and after-sales requirements.

Optical Power MeterSAT-4E

SAT-4E Optical Power Meter

SAT-4E optical power meter is an indispensable tool to identify fiber, measure fiber loss, verify continuity, and evaluate transmission performance, widely used in LAN, WAN, CATV, remote optical network, etc. Key features 1). Wide dynamic range, u...

View Product

Optical Power MeterSAT-7E

SAT-7E PON Optical Power Meter

SAT-7E PON power meteris a special tester to test FTTx/PON passive optical network, it can synchronously measure voice, data and video signal on BPON/EPON/GPON framework. It also can set the power threshold and indicate the pass, alarm and fail of every w...

View Product

Optical Power MeterSAT-4FWM

SAT-4FWM CWDM optical power meter

CWDM optical power meter is a full-featured palm-sized CWDM optical network channel detector, which is mainly used to measure and monitor the power of up to 6 or 18 CWDM channels. The test power value can be displayed in bar graph or list mode. It is spec...

View Product

Optical Power MeterSAT-7F

SAT-7F PON Power Meter

SAT-7F PON power meter integrates FTTx/PON power meter, VFL, RJ45 sequence, cable length, and RJ45 tracker.Featuresl 3.5 inch TFT screenl 1310/1490/1550nm in PON system can be tested.l Support function VFL/ RJ45 seq...

View Product

Model	SAT-4EXT	SAT-4EXC
Display Range	1310/1490/1550/1625:-70--+10 dBm 850/1300: -60--+6 dBm	1310/1490/1550/1625:-50--+26 dBm 850/1300: -40--+26 dBm
Accuracy	± 0.2dB
Calibrated Wavelengths	850nm/1300nm/1310nm/1490nm/1550/nm/1625nm
Display Resolving Power	0.01dB
Linearity	± 0.2 dB
OPM Connector	2.5mm universal
VFL Connector	2.5mm universal
VFL Output(Optional)	1mW or 10mW, CW and Glint
LED Light	SOS code output
Automatic Power Off	No operation in 10 minutes (can be cancelled), Low battery energy.
Battery Charge	Yes
Battery Life	Above 60 hours(OPM)

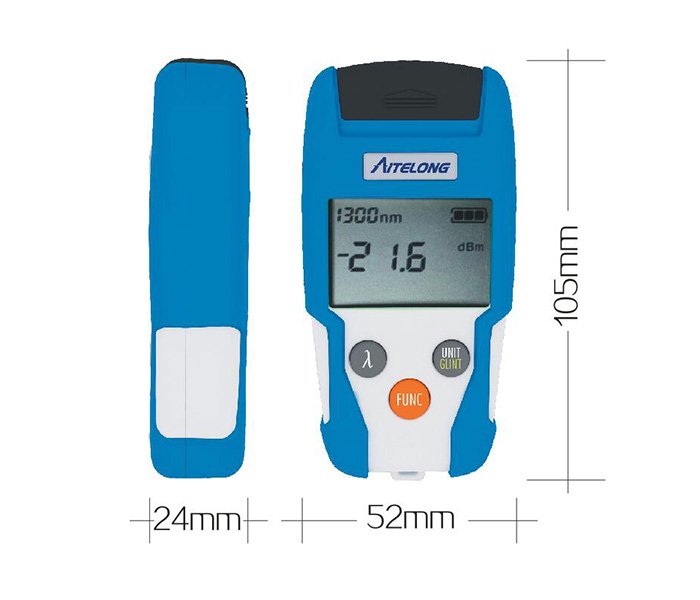

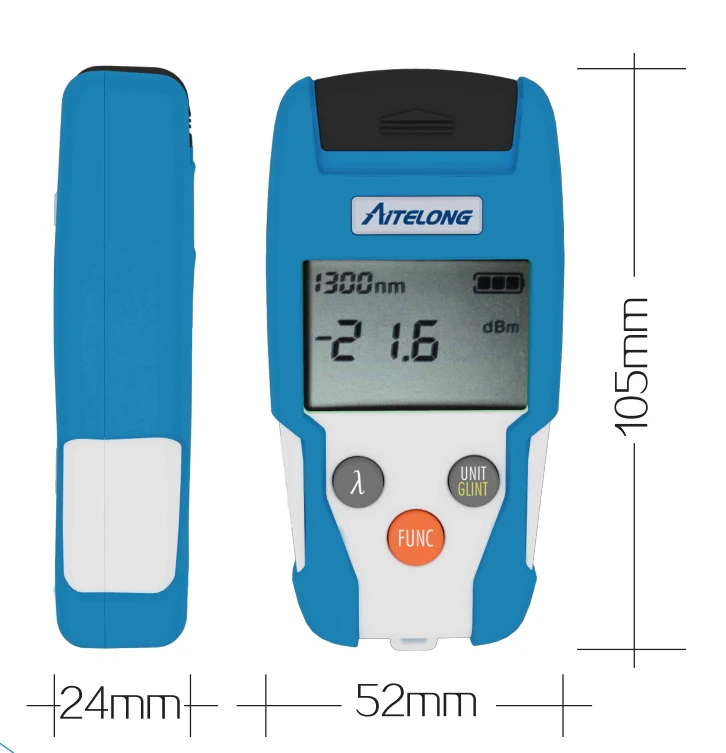

Size	105mm X 52mm X24mm
Weight	About 100g
Storage Temperature	-20---+60 ℃
Operating Temperature	-10---+50 ℃
Humidity	<90%RH
Elevation	0---5000m
