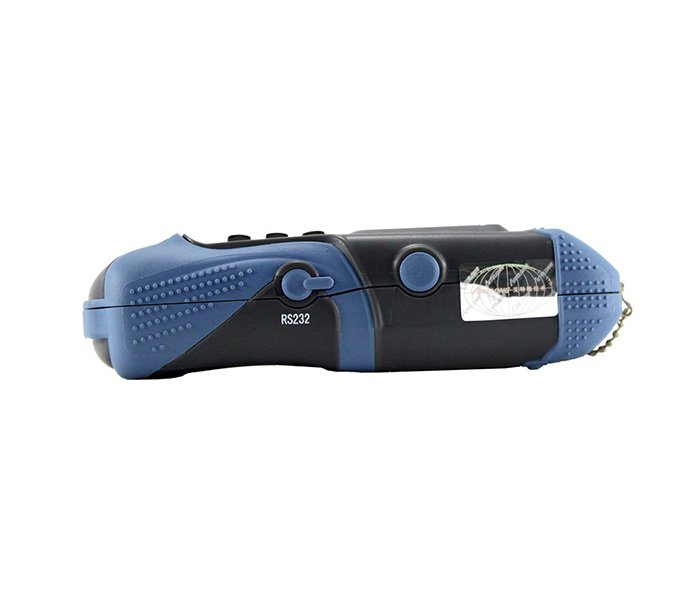

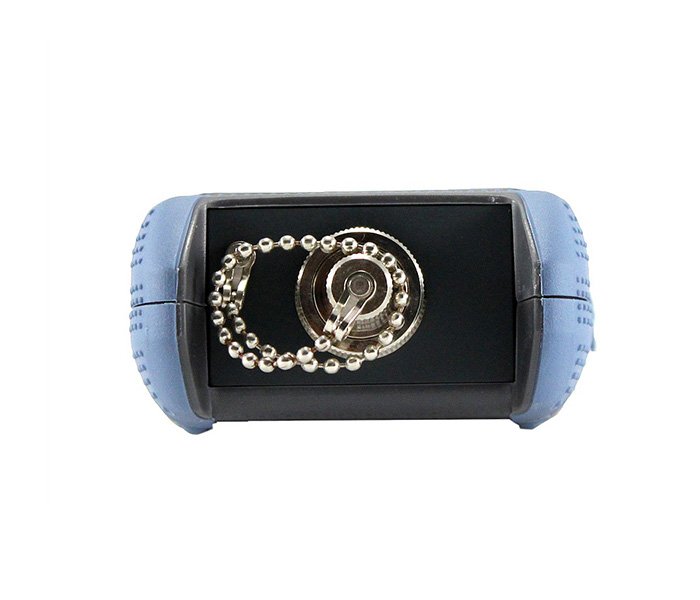

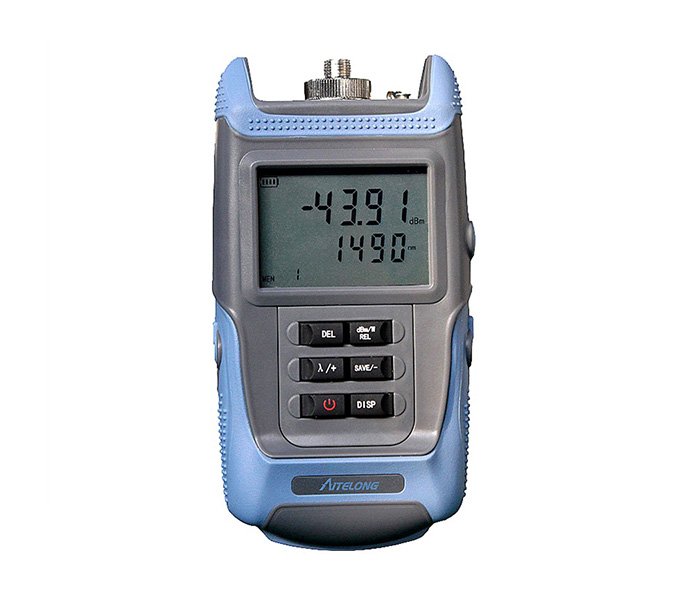

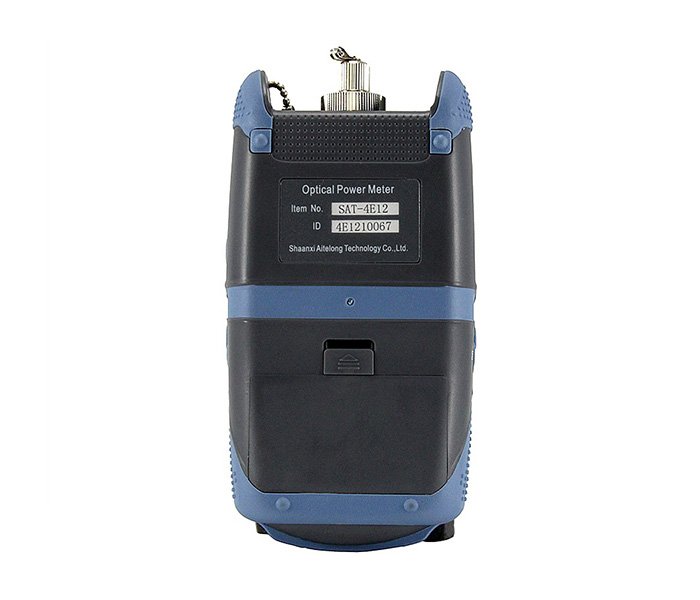

SAT-4E Optical Power Meter
SAT-4E optical power meter is an indispensable tool to identify fiber, measure fiber loss, verify continuity, and evaluate transmission performance, widely used in LAN, WAN, CATV, remote optical network, etc.Key features1). Wide dynamic range, up to 30dBm 2). Multi display units: nW, uW, mW, dBm, dB 3). Can store testing results up to 1000 groups 4). Low battery power alarming 5). Can transfer/download testing results to PC by USB cable (Optional) 6). Auto power OFF function
SAT-4E
SAT-4E Optical Power Meter
SAT-4E optical power meter is an indispensable tool to identify fiber, measure fiber loss, verify continuity, and evaluate transmission performance, widely used in LAN, WAN, CATV, remote optical network, etc.Key features1). Wide dynamic range, up to 30dBm
2). Multi display units: nW, uW, mW, dBm, dB
3). Can store testing results up to 1000 groups
4). Low battery power alarming
5). Can transfer/download testing results to PC by USB cable (Optional)
6). Auto power OFF function
SAT-4E optical power meter is an indispensable tool to identify fiber, measure fiber loss, verify continuity, and evaluate transmission performance, widely used in LAN, WAN, CATV, remote optical network, etc.
Key features
1). Wide dynamic range, up to 30dBm
2). Multi display units: nW, uW, mW, dBm, dB
3). Can store testing results up to 1000 groups
4). Low battery power alarming
5). Can transfer/download testing results to PC by USB cable (Optional)
6). Auto power OFF function
Parameters | Unit | Technical index | ||
Model |
| SAT-4E01 | SAT-4E02 | |
Detector |
| InGaAS | ||
Wavelength | nm | 800~1700 | ||
Working Wavelength | nm | 850, 980, 1300, 1310, 1490, 1550, 1625 | ||
Dynamic Rang | dBm | -70~+10 | -50~+26 | |
W | 0.1nW~10mW | 10nW~400mW | ||
Measurement Accuracy |
| ±5% | ||
Optical Interface |
| FC, ST, SC; | ||
Resolution |
| dBm:0.01dBm W: (0.1~1)％ | ||
Power Supply |
| 2×1.5V alkaline cells | ||
Power-off Time |
| None or 5~60 minutes adjustable | ||
Power Consumption | mW | 30 | ||
Working Temperature | ℃ | -10~+50 | ||
Storage Temperature | ℃ | -40~+70 | ||
Dimension | mm | 140×72×38 | ||
Weight | Kg | 0.25 | ||
It is only for reference. The actual accessories and quantity are according to demand.
No. | Item | Qty. |
1 | SAT-4E1 series optical power meter | 1 set |
2 | User Manual | 1 pc |
3 | Attached disk | 1 pc |
4 | Delivery inspection record | 1 pc |
5 | Warranty Card/ Qualified certificate of products | 1 pc |
6 | Packing list | 1 pc |
7 | 1.5V 5# Alkaline dry battery | 2 pcs |
8 | DB9- headphone RS232 Serial port wire | 1 pc |
9 | ST, SC, FC adaptor | 1 pc per type |
10 | Portable Soft bag | 1 pc |
AITELONG Support
Product & Project Support
Support for product selection, documentation and field use.
Application Selection
Configuration guidance based on your network, battery system or test objective.
Technical Support
Responsive communication for operation, documentation and after-sales requirements.
Related products
You May Also Like

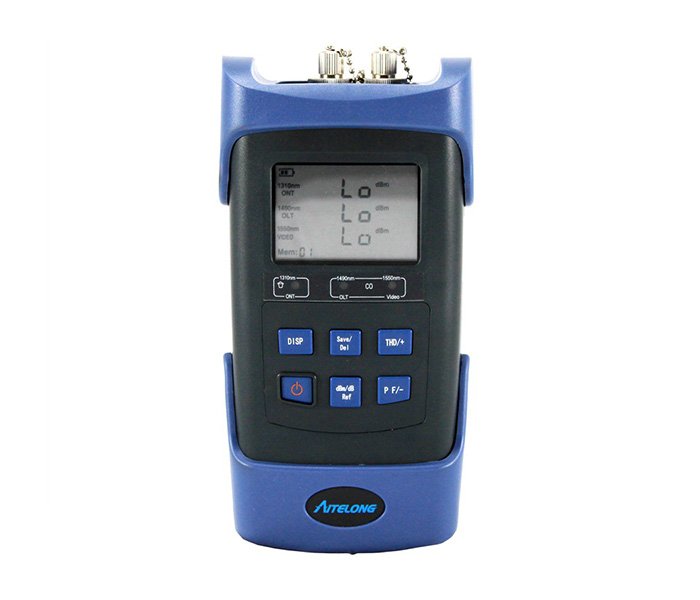

SAT-7E PON Optical Power Meter
SAT-7E PON power meteris a special tester to test FTTx/PON passive optical network, it can synchronously measure voice, data and video signal on BPON/EPON/GPON framework. It also can set the power threshold and indicate the pass, alarm and fail of every w...
View Product

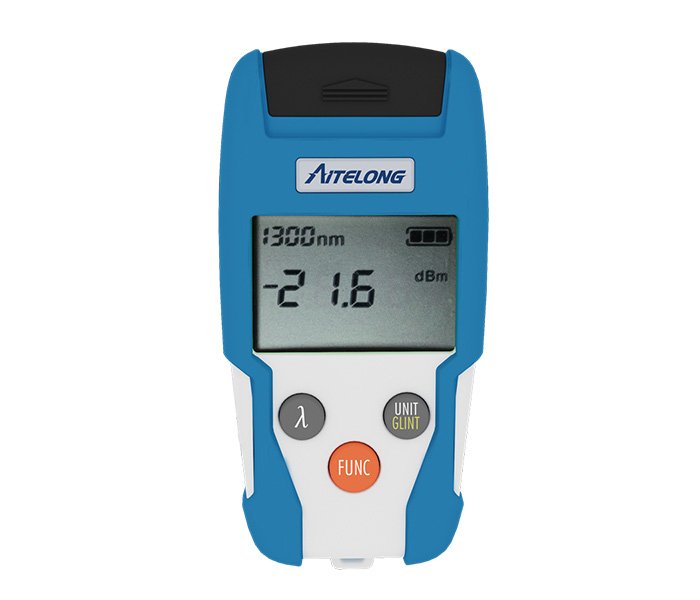

SAT-4EX Optical Power Meter
