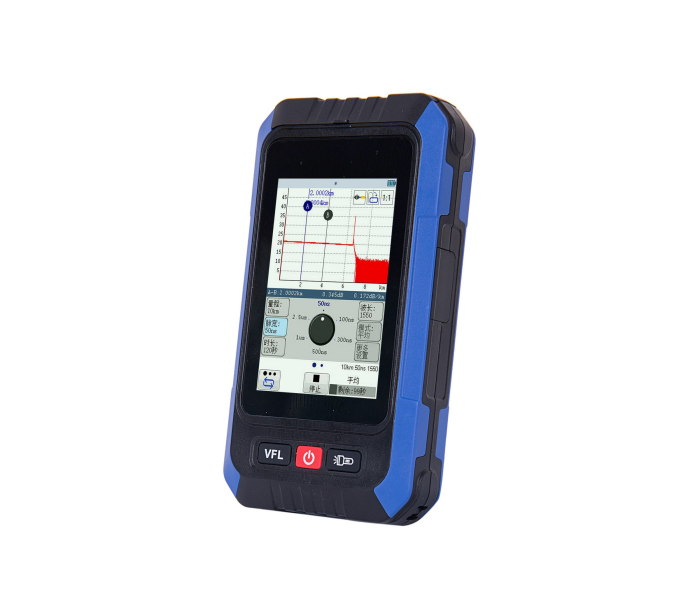

SAT-18EXC Palm OTDR

Features l Capacitive touch screen l Curve scaling l Can be tested with light l Unique test parameter knob design   Technical Specification Dynamic Range 24/22dB Wavelength 1310/1550nm

SAT-18EXC Palm OTDR
SAT-18EXC Palm OTDRSAT-18EXC Palm OTDR

SAT-18EXC

SAT-18EXC Palm OTDR

Features
l Capacitive touch screen
l Curve scaling
l Can be tested with light
l Unique test parameter knob design


Technical Specification
Dynamic Range
24/22dB
Wavelength
1310/1550nm

Contact Aitelong →

Features

l Capacitive touch screen

l Curve scaling

l Can be tested with light

l Unique test parameter knob design




Technical Specification

Dynamic Range

24/22dB

Wavelength

1310/1550nm

Fiber Type

SM

Event Dead Zone

2m

Attenuation Dead Zone

4m

Pulse Width

5ns,10ns,20ns,50ns,100ns,300ns,1.0ms,2.5ms,10ms, 20ms

Distance Range

0.5 to 80km

Loss Test Accuracy

±0.05dB/ dB

Linearity

±5%

Screen size

3.5 inch

storage

500

Standard port

FC/SC/ST/LC optional

Battery

Continuous working>10 hours

Size

L*W*H：145mm×78mm×30mm

Weight

300g

VFL

(optional)

 Wavelength:650±20nm;Output Power:10mW

 Working mode:CW/1Hz/2Hz;Standard connector:FC/UPC

OPM

(Optional)

 Calibrated wavelength: 850,980,1270,1300,1310,1490,1550,1577,1625nm

Dynamic range: -70 to +6 dBm; -50 ~ +26 (optional)

Detector type: InGaAs

Laser source(Optional)

Wavelength(nm)：Same with OTDR; Output: ≥ -7dBm
