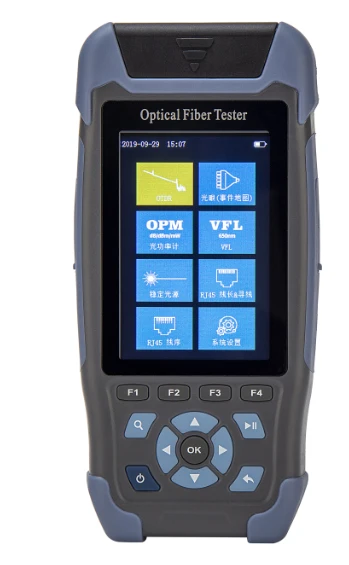

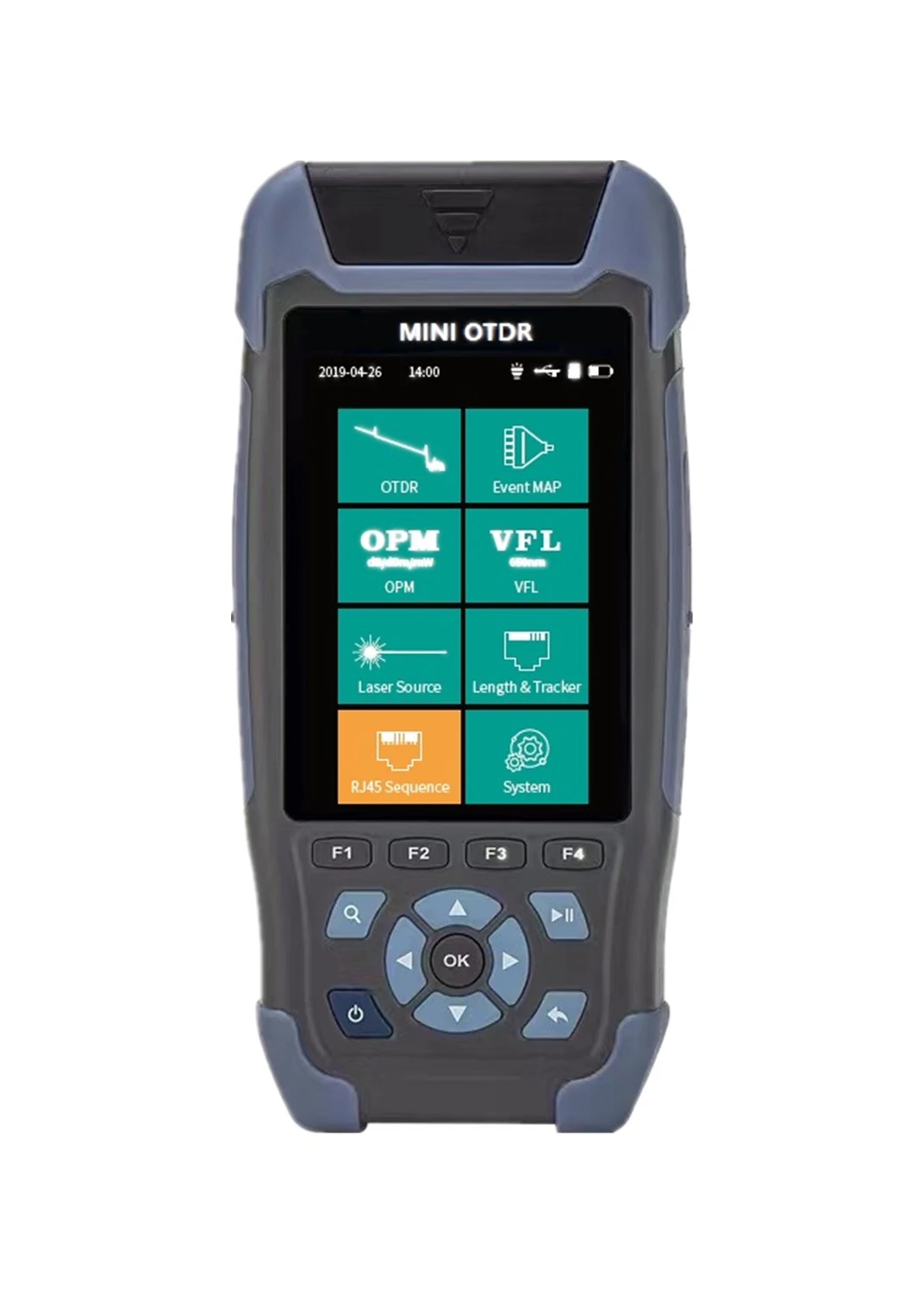

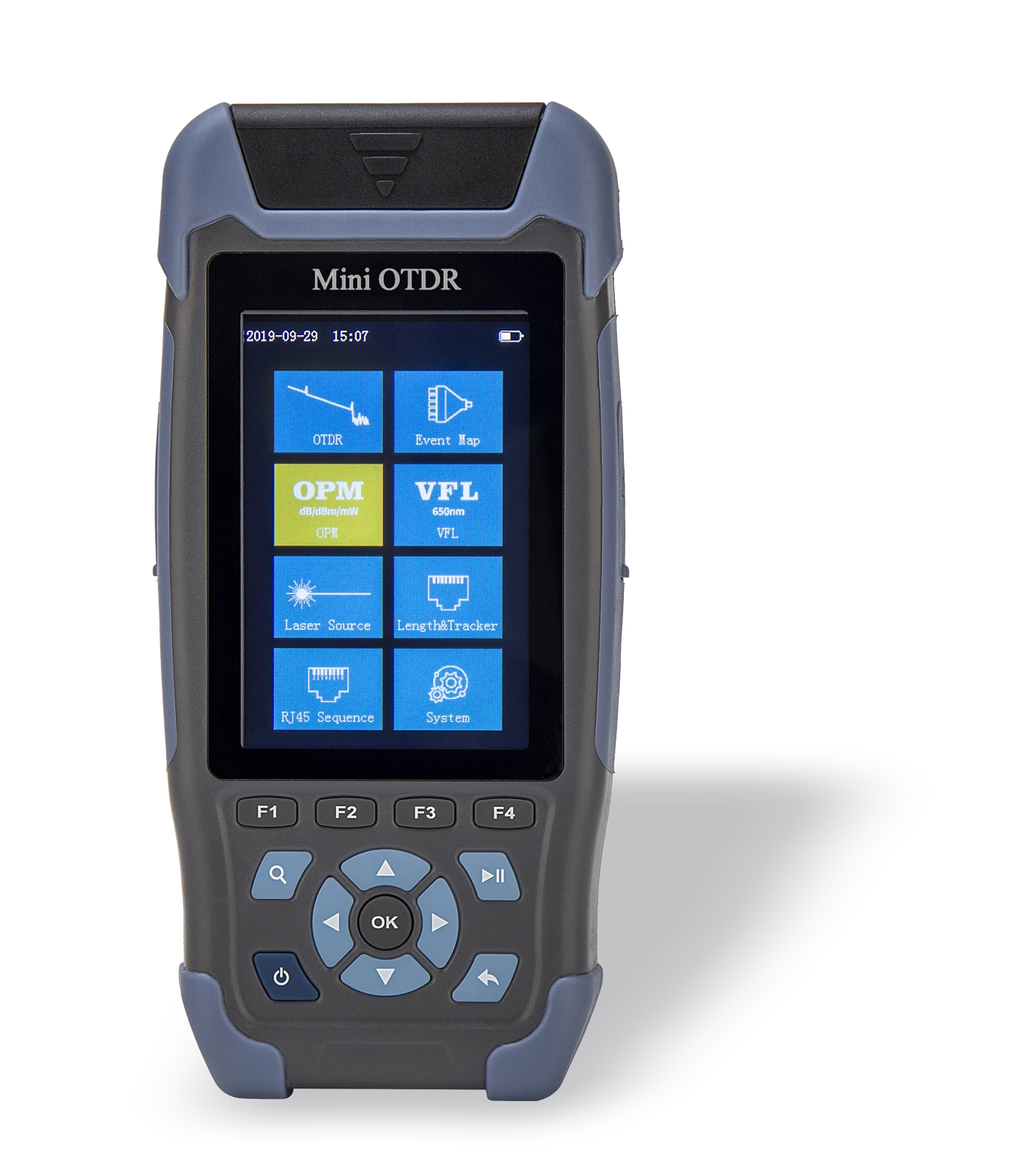

SAT-18EXB Mini OTDR

(1). Intelligent OTDR software provides detailed test report (2). Waveform display, quickly zoom in & zoom out, easy to operate. (3). Can use any USB charger to charge. (4). Comfortable button (5). Dustproof cover to protect optical port (6). Built-in OPM/VFL function General Specification Screen 3.5“Colorful LCD screen Connect Port FC/UPC(SC、ST available) Com. Port Micro USB*1 Results Storage Internal：≥600；External：TF Card;

SAT-18EXB Mini OTDR
SAT-18EXB Mini OTDR

SAT-18EXB

SAT-18EXB Mini OTDR

(1). Intelligent OTDR software provides detailed test report
(2). Waveform display, quickly zoom in & zoom out, easy to operate.
(3). Can use any USB charger to charge.
(4). Comfortable button
(5). Dustproof cover to protect optical port
(6). Built-in OPM/VFL function
General Specification
Screen
3.5“Colorful LCD screen
Connect Port
FC/UPC(SC、ST available)
Com. Port
Micro USB*1
Results Storage
Internal：≥600；External：TF Card;

Contact Aitelong →
8 in 1: OTDR, OLS, OPM, VFL, iOTA(Event Map),RJ Sequence, RJ length and LED Lighter
Key Features:

(1). Intelligent OTDR software provides detailed test report

(2). Waveform display, quickly zoom in & zoom out, easy to operate.

(3). Can use any USB charger to charge.

(4). Comfortable button

(5). Dustproof cover to protect optical port

(6). Built-in OPM/VFL function



General Specification

Screen

3.5“Colorful LCD screen

Connect Port

FC/UPC(SC、ST available)

Com. Port

Micro USB*1

Results Storage

Internal：≥600；External：TF Card;

File type: SOR Standard file format

Battery Life

stand by>7.5h； testing >4h

Power Supply

3.7V, 4000mAh lithium battery;

Power adapter:5VDC, 2A.

Working Environments

Working temperature: 0~+50℃，<95%RH

Dimensions/Weight

173mm*82mm*37mm,  <350g

Technical Specification

Dynamic Range

24/22dB

Wavelength

1310nm/1550nm&plusmn;20nm

Fiber Type

SM (G.652)

Event Dead Zone

3m

Attenuation Dead Zone

8m

Pulse Width

3ns to10us

Distance Range

500m to 60km

Measurement Accuracy

&plusmn; (1m+sample space+0.005%*measurement distance)

Linearity

&plusmn;0.2 dB/dB

Sample Points

16k~128k

Sample Resolutions

0.05m~8m

IOR

&plusmn;3dB

VFL

Output Power

10mW

Wavelength

650&plusmn;20nm

Working Mode

CW/1Hz/2Hz

Connect Port

FC/SC/ST

Power Meter

Wavelength

800nm to 1700 nm

Calibrated wavelength

850/980/1300/1310/1490/1550/1625 nm

Measurement range

-50 to +26 dBm

Laser

Source

Working Wavelength

1310nm/1550nm&plusmn;20nm

Output Power

&ge;-5dBm

Frequency

270Hz /330Hz /1kHz /2kHz

RJ45

Testing Distance

300m


AITELONG Support

Product & Project Support

Support for product selection, documentation and field use.

Technical Support

Technical Support

Responsive communication for operation, documentation and after-sales requirements.
