SAT-6C03 Optical Fiber Identifiuer

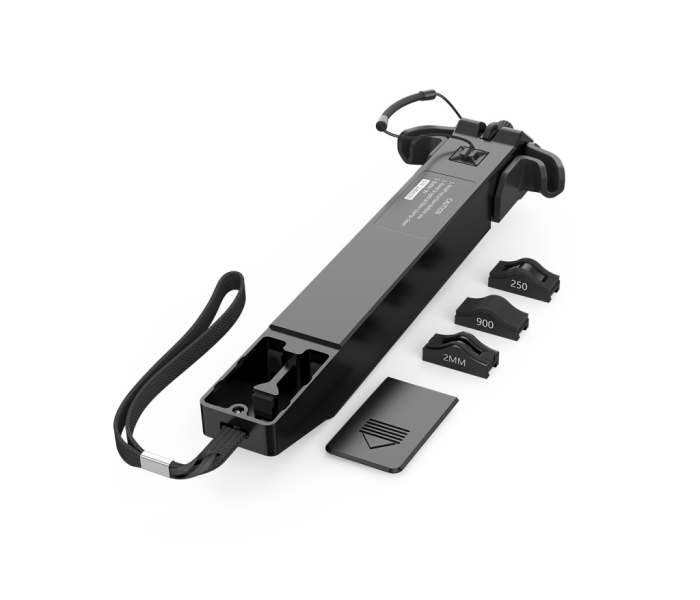

SAT-6C03 can detect optical signal presence/type and direction anywhere on fibers during optical network deployment, maintenance and troubleshooting. With non-destructive macro-bend detection technology, it introduces no damage to tested fiber or interference to the service on fiber. SAT-6C is able to identify wide-spectrum signals (such as signals in CATV system) and can be used in SONET/SDH & DWDM systems tests. Key Features l Fiber types: 250μm, 900μm, 2mm/3mm jacketed fiber l Non-destructive detection l Indication of signal presence, strength and direction l CW/MOD tones detection l Buzzer indication l Handheld & sturdy

SAT-6C03 Optical Fiber Identifiuer
SAT-6C03 Optical Fiber IdentifiuerSAT-6C03 Optical Fiber Identifiuer

SAT-6C03

SAT-6C03 Optical Fiber Identifiuer

SAT-6C03 can detect optical signal presence/type and direction anywhere on fibers during optical network deployment, maintenance and troubleshooting. With non-destructive macro-bend detection technology, it introduces no damage to tested fiber or interference to the service on fiber. SAT-6C is able to identify wide-spectrum signals (such as signals in CATV system) and can be used in SONET/SDH & DWDM systems tests.
Key Features
l Fiber types: 250μm, 900μm, 2mm/3mm jacketed fiber
l Non-destructive detection
l Indication of signal presence, strength and direction
l CW/MOD tones detection
l Buzzer indication
l Handheld & sturdy

Contact Aitelong →

SAT-6C03 can detect optical signal presence/type and direction anywhere on fibers during optical network deployment, maintenance and troubleshooting. With non-destructive macro-bend detection technology, it introduces no damage to tested fiber or interference to the service on fiber. SAT-6C is able to identify wide-spectrum signals (such as signals in CATV system) and can be used in SONET/SDH & DWDM systems tests.

Key Features

l Fiber types: 250μm, 900μm, 2mm/3mm jacketed fiber

l Non-destructive detection

l Indication of signal presence, strength and direction

l CW/MOD tones detection

l Buzzer indication

l Handheld & sturdy


Specification

Model

SAT-6C03

Wavelength

800~1700nm

Detector Type

InGaAs

Signal Type

CW, 270Hz±5%, 1kHz±5%, 2kHz±5%

Display

Signal presence, Signal strength, Signal direction, MOD frequency

Insertion Loss (Typical value)

0.8dB(1310nm); 2.5dB(1550nm)

Signal Direction Test Range

-46-+10dBm(1310nm); -50-+10dBm(1550nm)

Detect Sensitivity(1)

≤ -50dBm

Insertion Loss

H 0.25~H 0.9: 0.1dB; H 2.0~H 2.5: 0.5dB; H 2.5~H3.0: 1.0 dB

Fiber Type

250um bare fiber, 900um/ 2mm/3mm jacketed fiber

Battery

9V Alkaline Battery

Battery Life

≥24 hours

Operating Temperature

-10 ~ 50℃

Storage Temperature

-25 ~70℃

Relative Humidity

0 ~ 95% (Non-condensing)

Weight

235g

Dimensions (H×W×T)

196×35×30mm

Note: (1) Typical value at 1310/1550nm

* Specifications subject to change without notice





AITELONG Support

Product & Project Support

Support for product selection, documentation and field use.

Technical Support

Technical Support

Responsive communication for operation, documentation and after-sales requirements.
