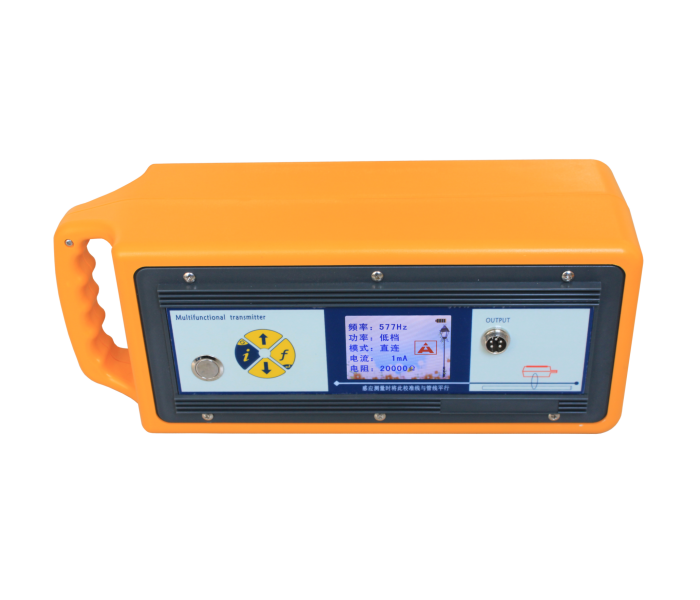

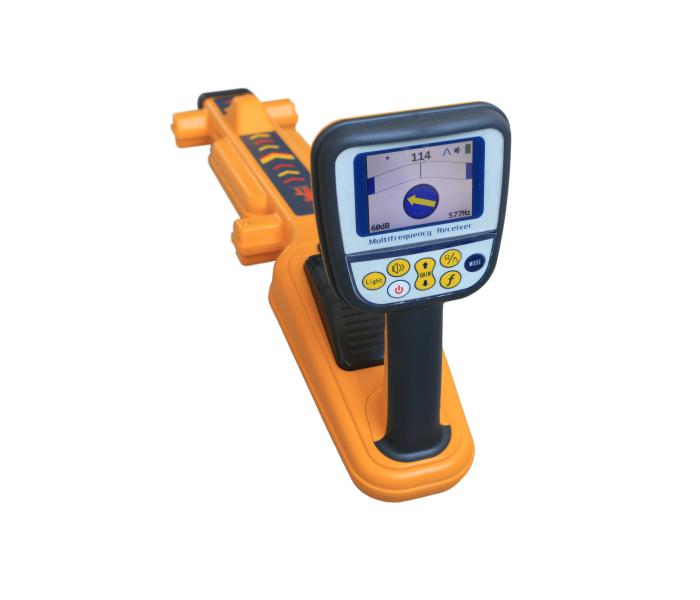

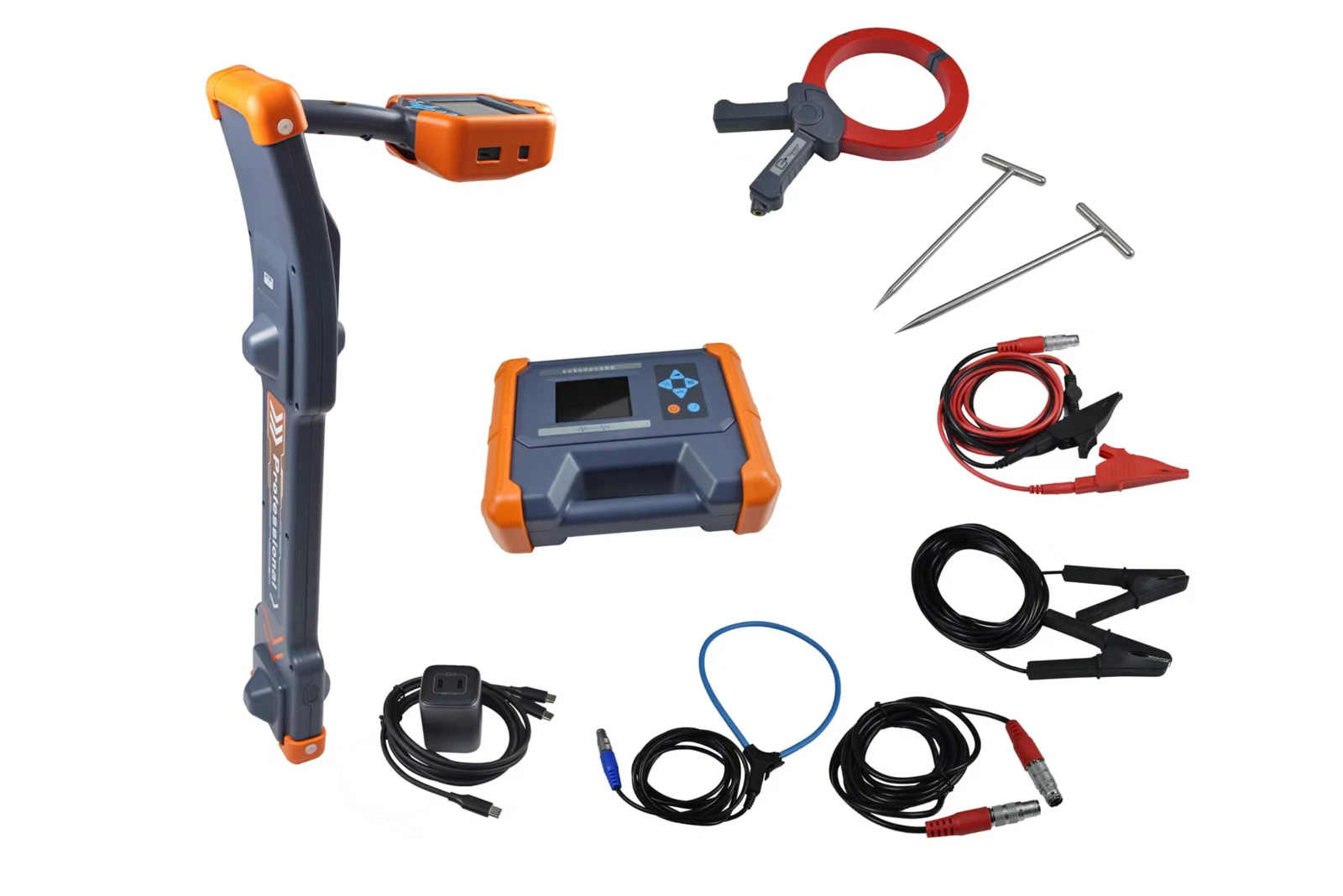

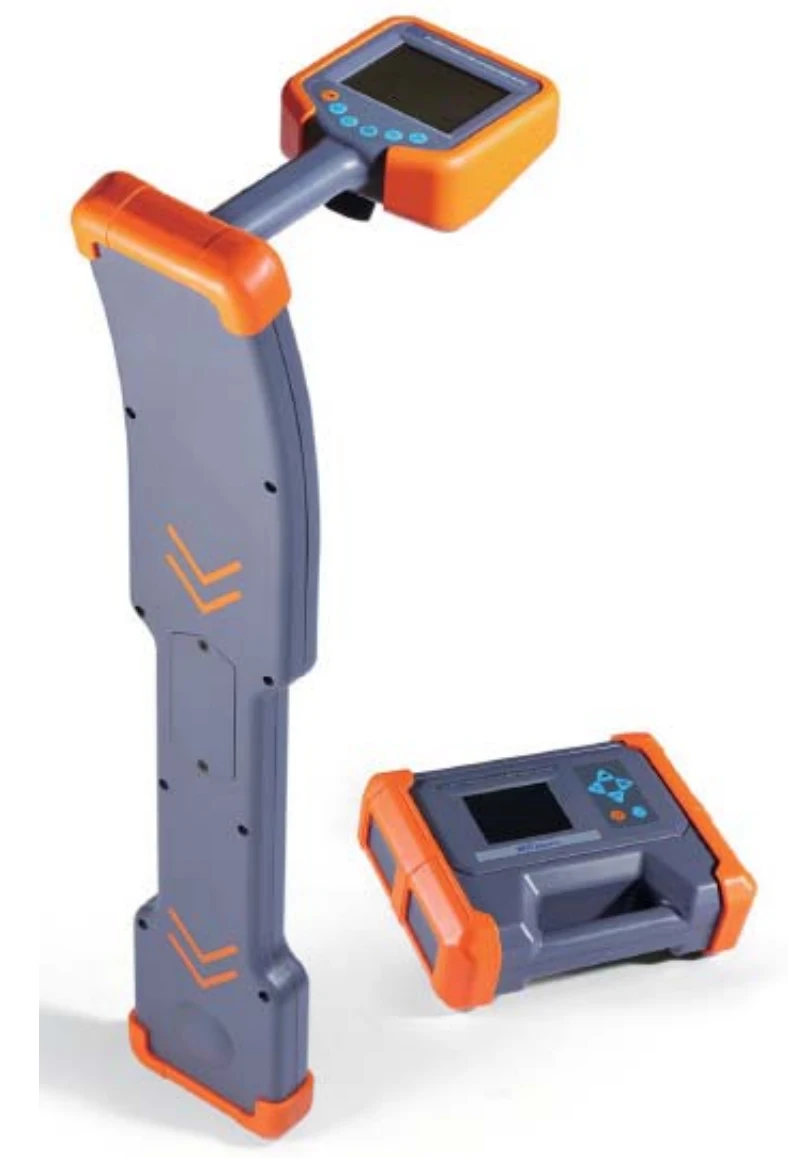

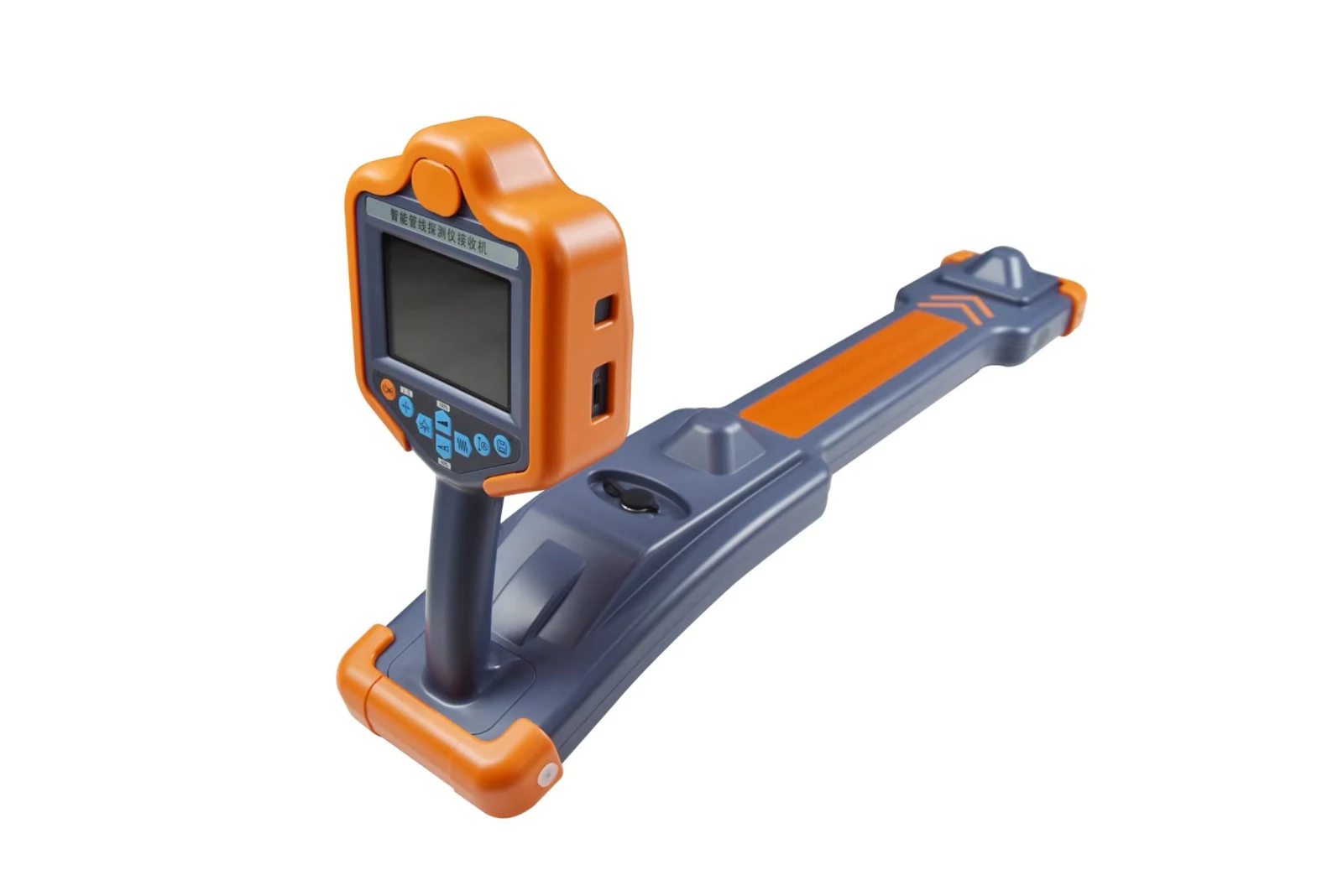

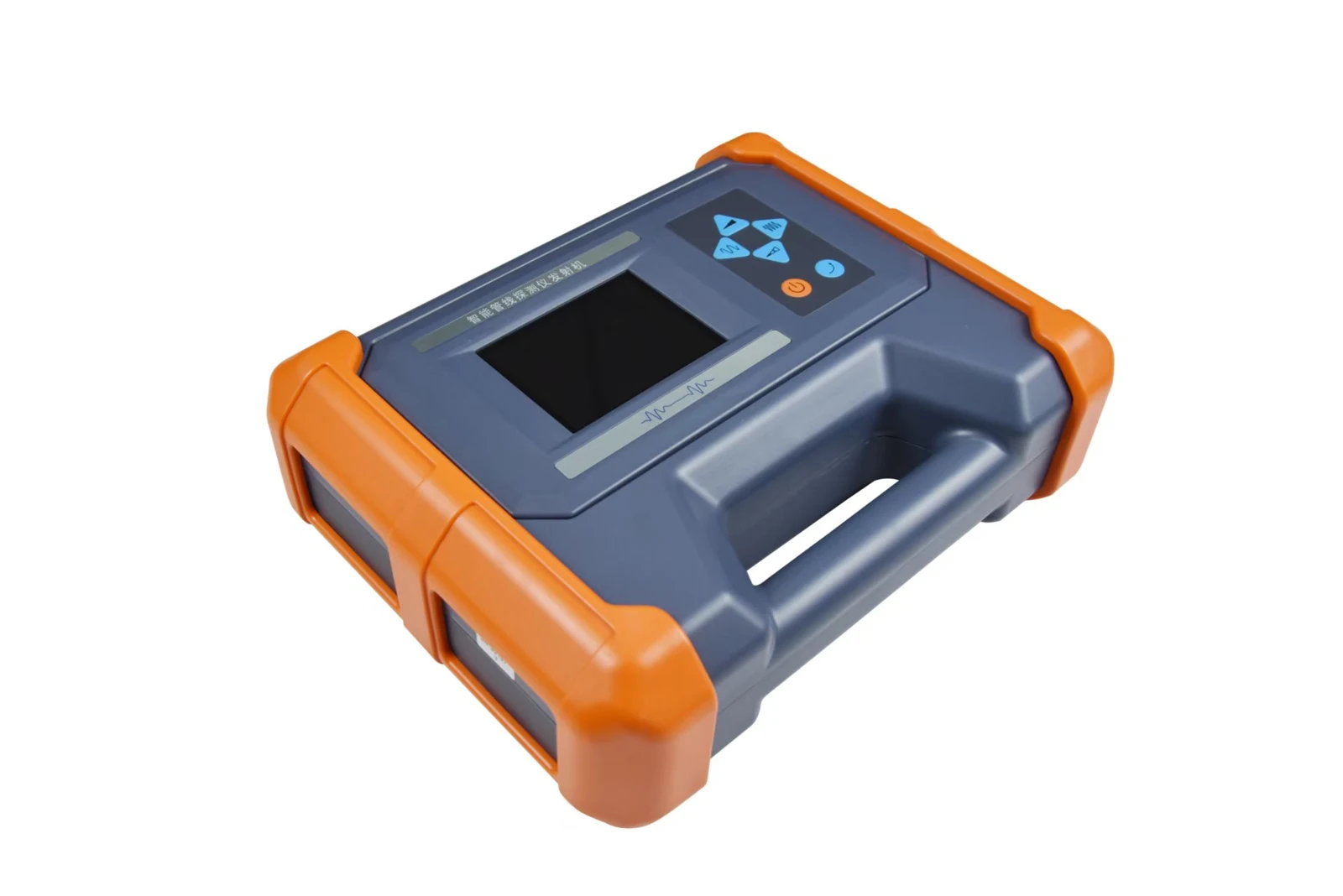

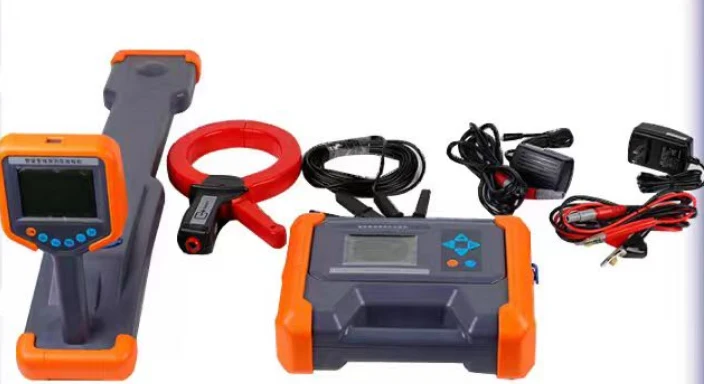

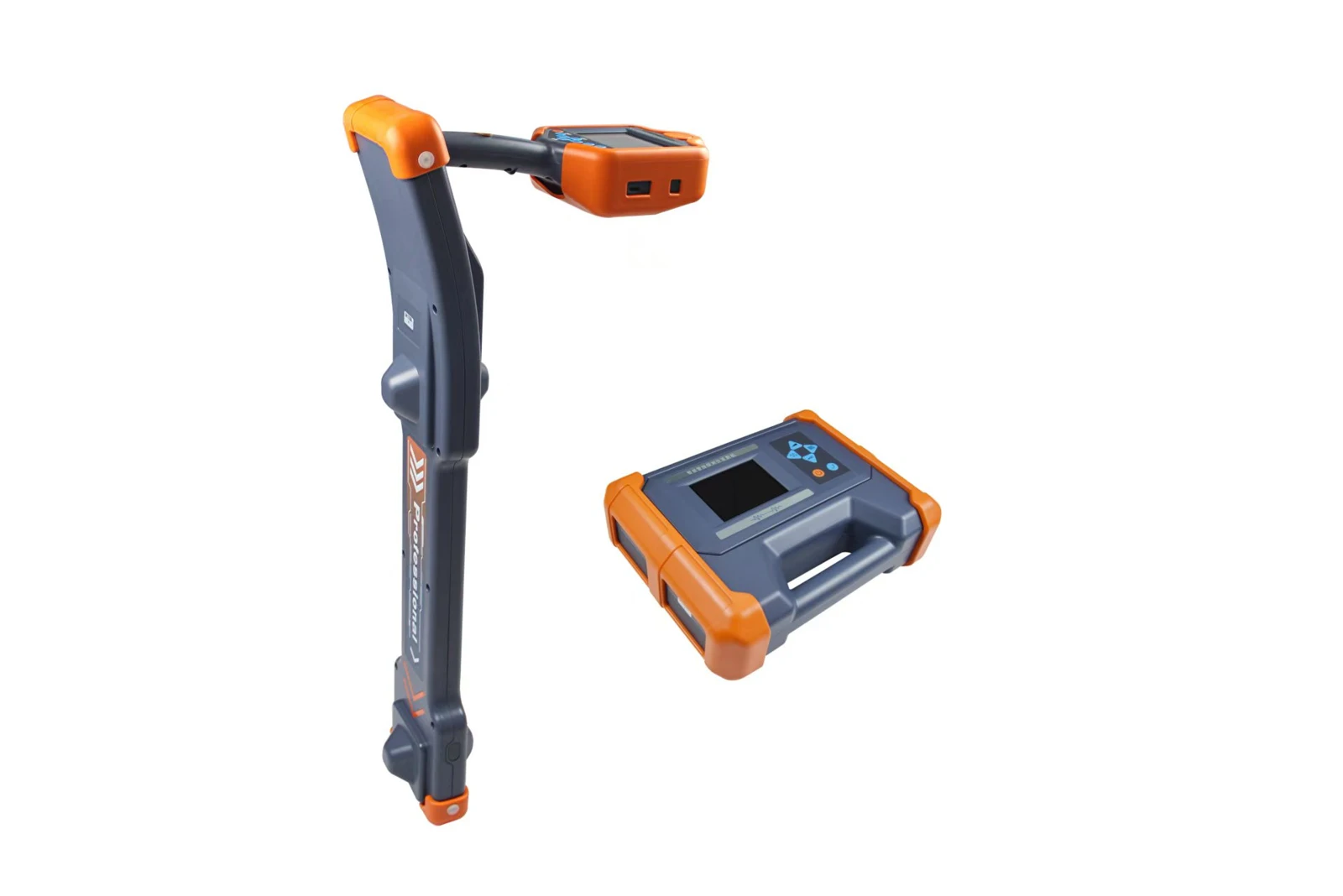

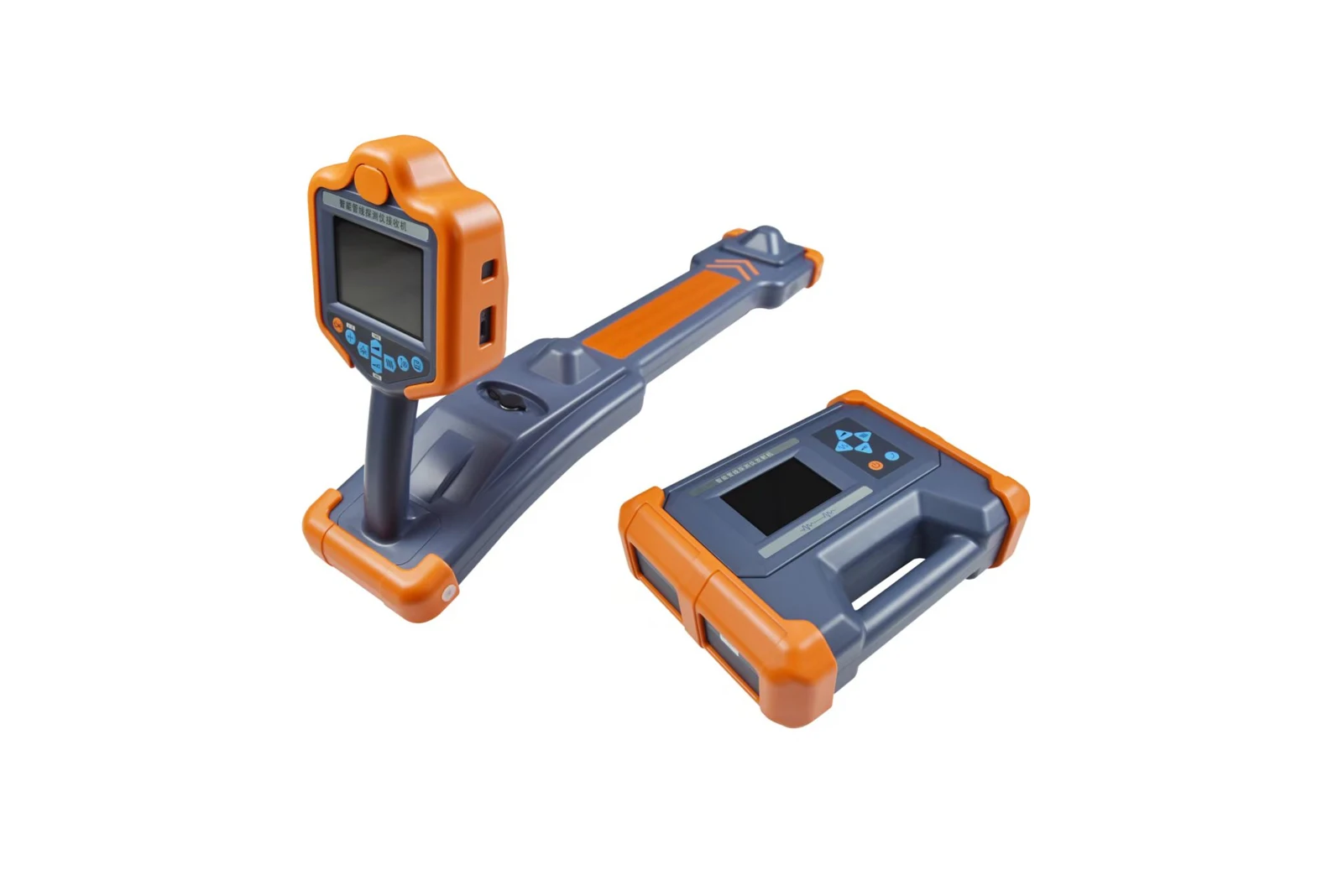

SAT-20E Optical Cable Routing Locator
Key Features: 1). Full frequency, digital, color frequency intelligent positioning system. 2). Intelligent compass guide features to help quickly and accurately locate the cable. 3). High power transmitter, maximum depth of 15 meters. Technical Specification Model SAT-20E Optical Cable Routing Locator Operating frequency 50Hz, 60 Hz, 512 Hz, 640 1.3K, Hz 8.2KHz, Hz, 9.6 KHz, 16.4 KHz, 32 KHz, 65 KHz, 74 KHz, 82 KHz, 98 KHz, 128 KHz, KHz, 131, 200 KHz Color LCD 3.5-inch color LCD, adjustable backlight Antenna mode Wave method, wide peak, peak width of the arrow, trough method Signal strength
SAT-20E
SAT-20E Optical Cable Routing Locator

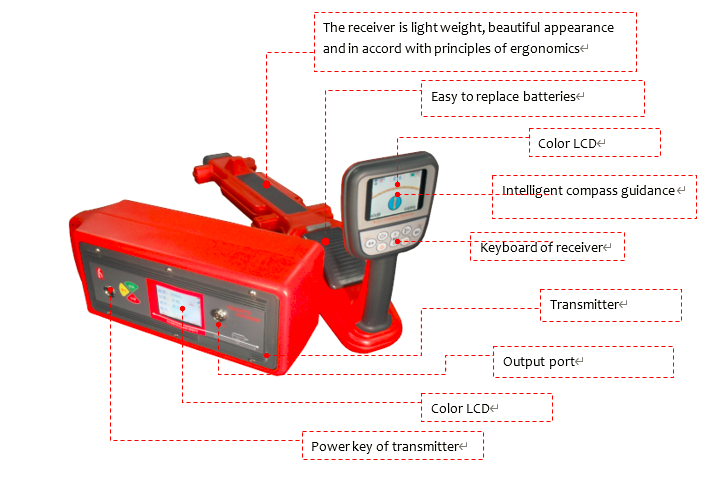

Key Features:
1). Full frequency, digital, color frequency intelligent positioning system.
2). Intelligent compass guide features to help quickly and accurately locate the
cable.
3). High power transmitter, maximum depth of 15 meters.
Technical Specification
Model
SAT-20E Optical Cable Routing Locator
Operating frequency
50Hz, 60 Hz, 512 Hz, 640 1.3K, Hz 8.2KHz, Hz, 9.6 KHz, 16.4 KHz, 32 KHz, 65 KHz, 74 KHz, 82 KHz, 98 KHz, 128 KHz, KHz, 131, 200 KHz
Color LCD
3.5-inch color LCD, adjustable backlight
Antenna mode
Wave method, wide peak, peak width of the arrow, trough method
Signal strength
Key Features:
1). Full frequency, digital, color frequency intelligent positioning system.
2). Intelligent compass guide features to help quickly and accurately locate the
cable.
3). High power transmitter, maximum depth of 15 meters.
Technical Specification
Model | SAT-20E Optical Cable Routing Locator |
Operating frequency | 50Hz, 60 Hz, 512 Hz, 640 1.3K, Hz 8.2KHz, Hz, 9.6 KHz, 16.4 KHz, 32 KHz, 65 KHz, 74 KHz, 82 KHz, 98 KHz, 128 KHz, KHz, 131, 200 KHz |
Color LCD | 3.5-inch color LCD, adjustable backlight |
Antenna mode | Wave method, wide peak, peak width of the arrow, trough method |
Signal strength | Graphics and digital display, range：0 ~999 |
Gain control | Automatic gain and manual gain, dynamic gain range： 0dB ~ 100dB |
Detection depth | Max. detection depth > 5 meters (direct method) |
Maximum detection range | ³15km |
Depth display | £2.5m |
Current display | Effective current value, can choose real-time |
Sound indicator | Adjust FM tone with signal strength |
Power display | Graphic display |
Accuracy | low frequency :±(1-5)%£2.5m ; RF :±(5-12)%£2.5m |
Power supply | Built-in 9V 2200mAH rechargeable nickel-hydride battery |
Working time | Continuous working :£6 hours |
Operating temperature | -20°C--+70°C |
