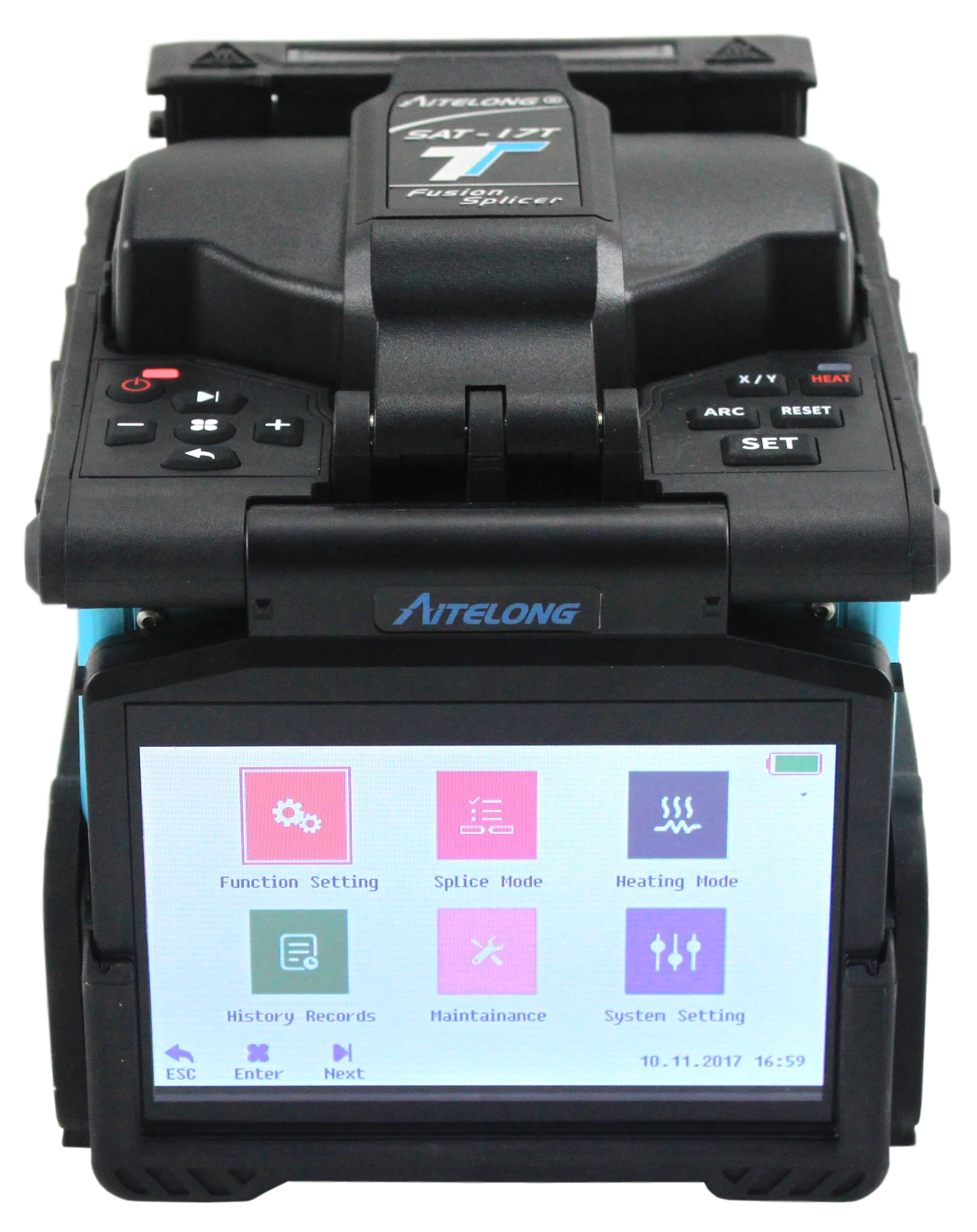

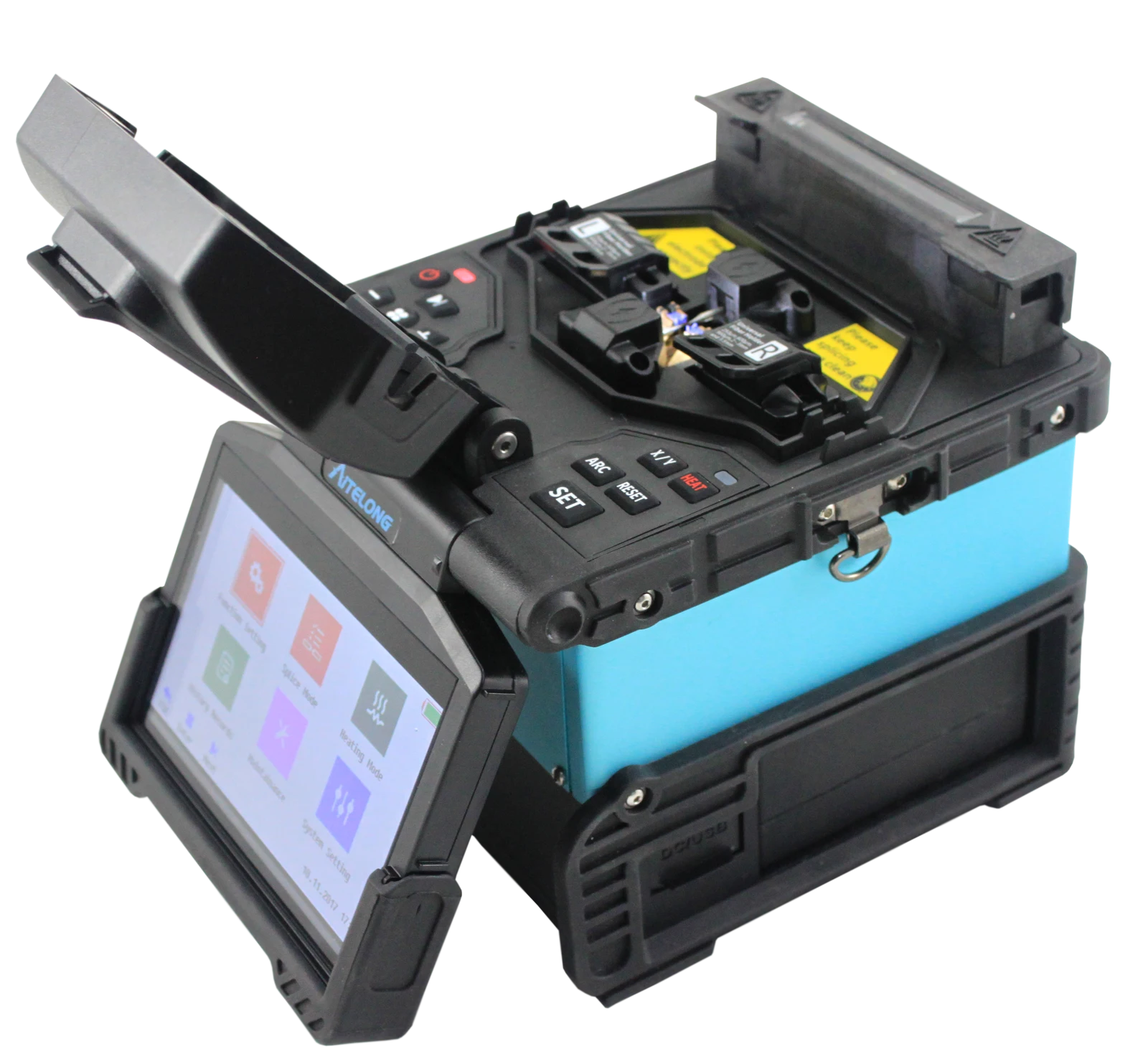

SAT-17T Optical Fusion Splicer
Key Features 1). Ultra-low Splice loss 2). Mirror Less Design 3). Low weight , less than 2Kg with battery and bumper 4). Full automatic heater 5). 6 sec fast splicing 6). 7800mAH large Li battery pack 7). Compatable with bare fiber,tail fiber and indoor cable 8). Wind protect, dust-proof, water-proof
SAT-17T

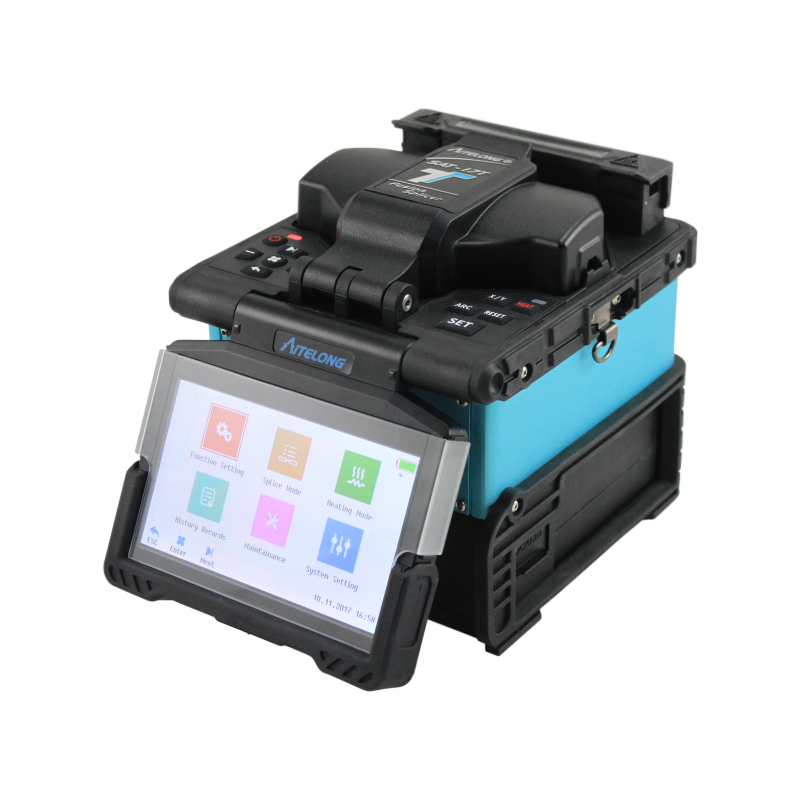

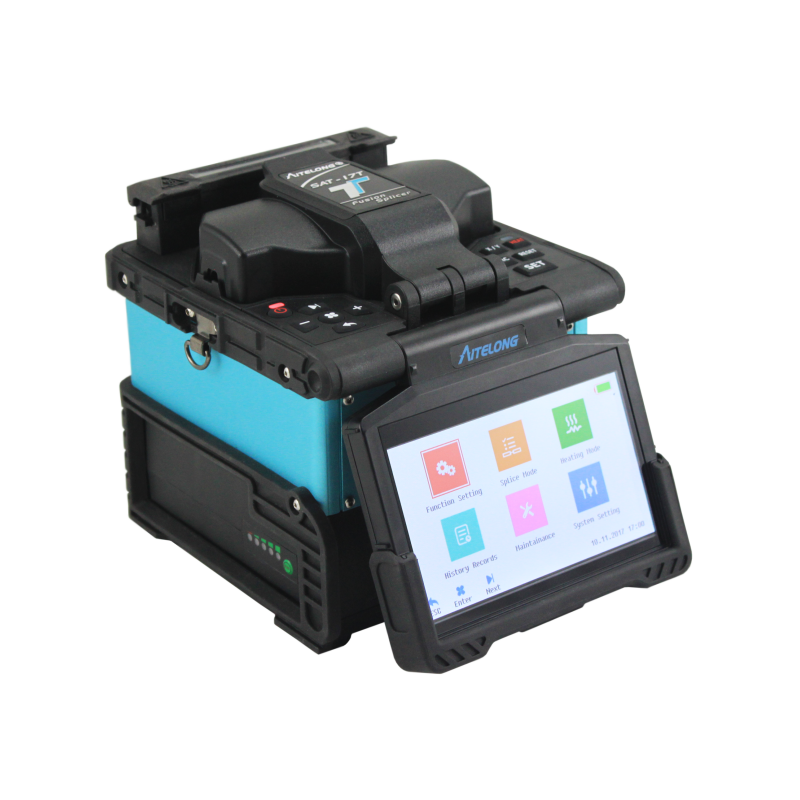

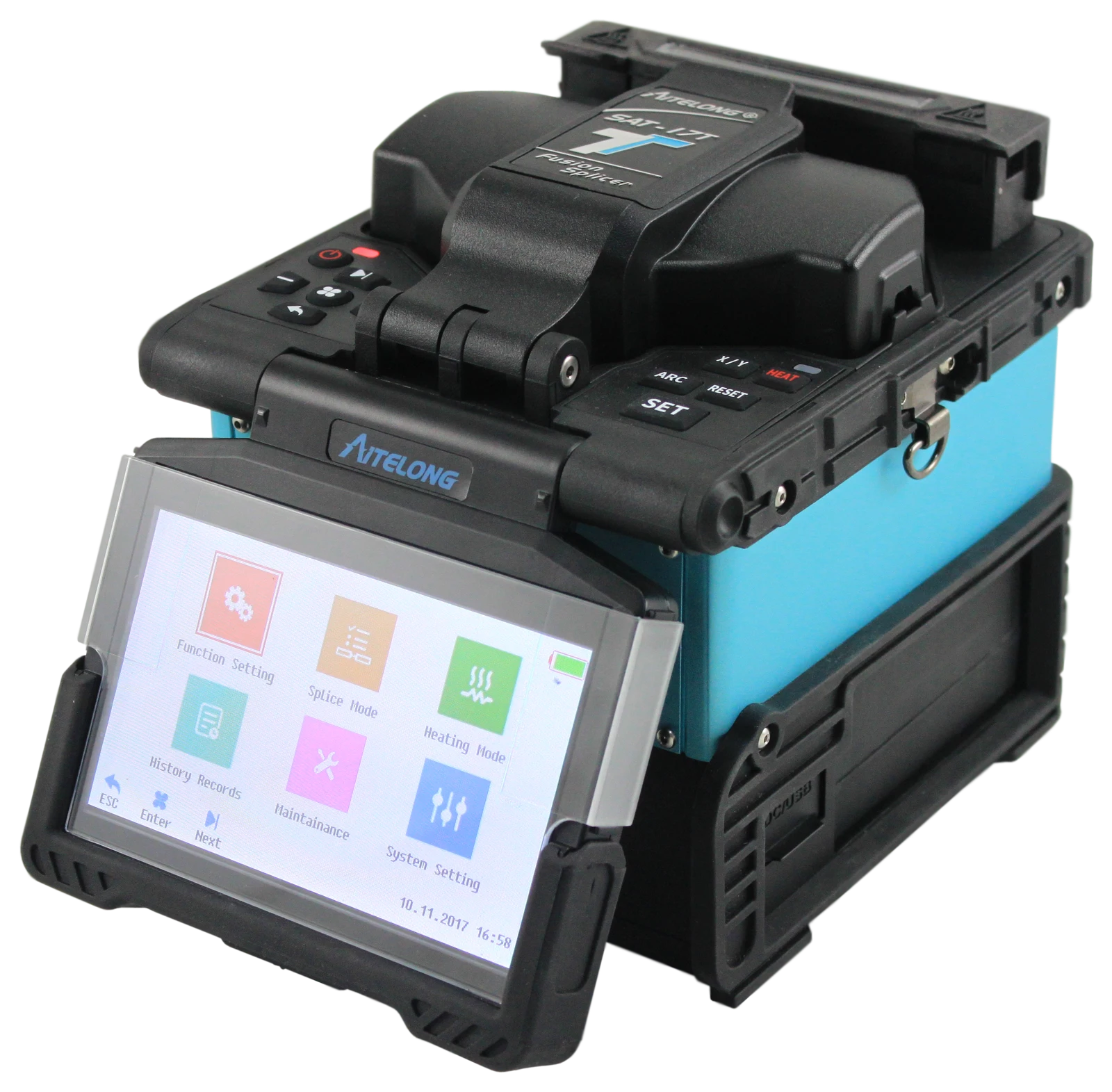

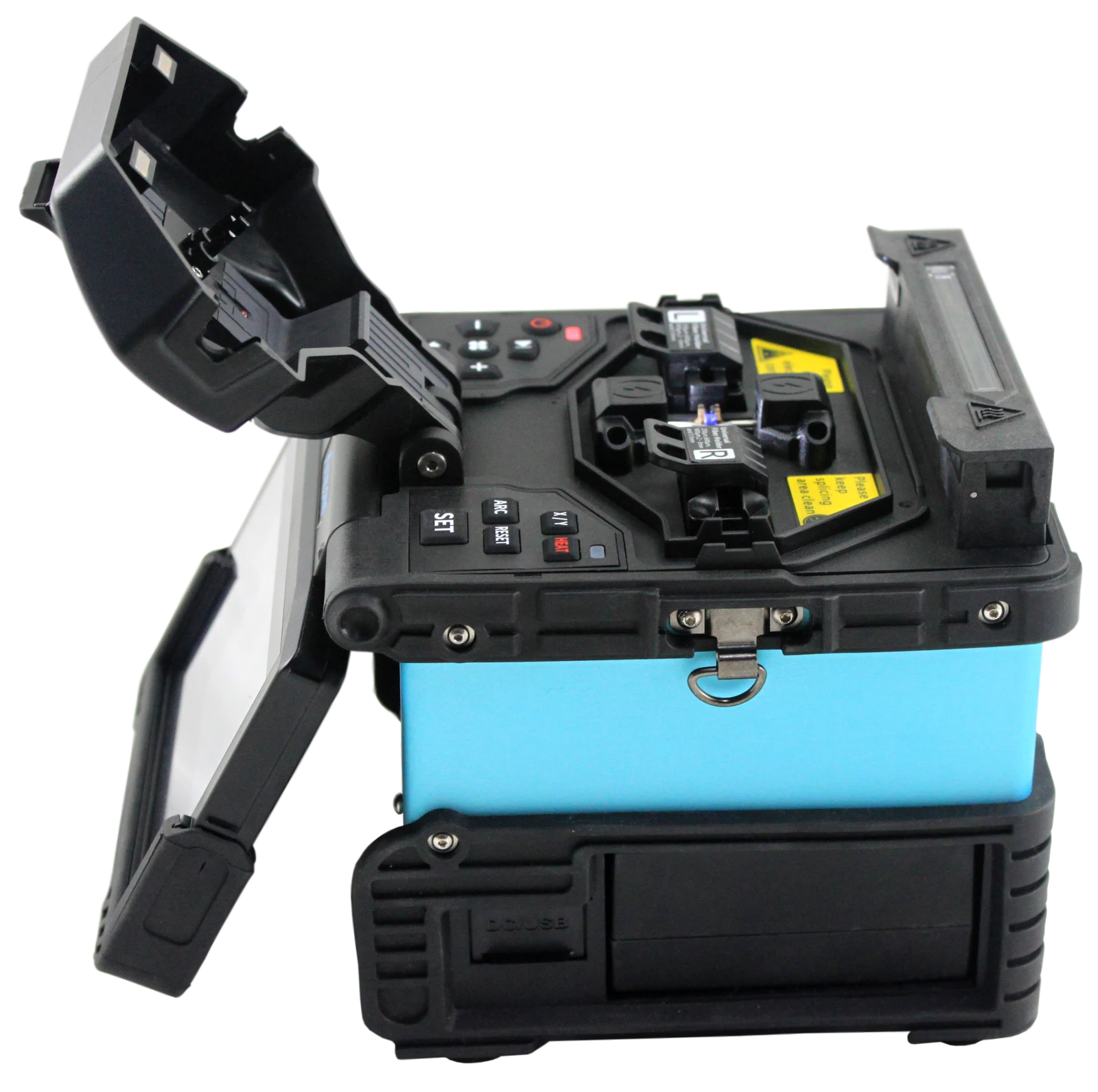

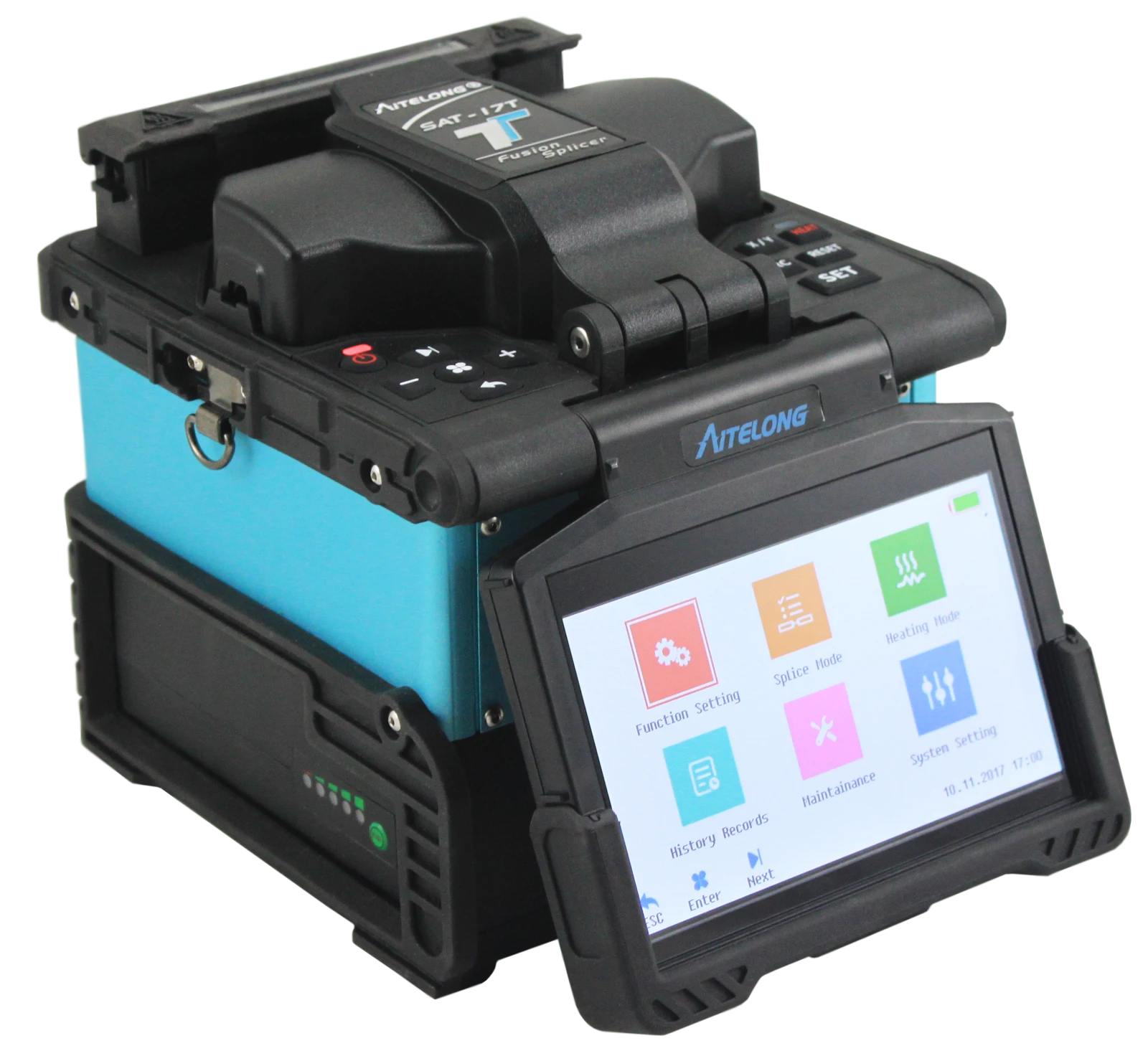

SAT-17T Optical Fusion Splicer
Key Features
1). Ultra-low Splice loss
2). Mirror Less Design
3). Low weight , less than 2Kg with battery and bumper
4). Full automatic heater
5). 6 sec fast splicing
6). 7800mAH large Li battery pack
7). Compatable with bare fiber,tail fiber and indoor cable
8). Wind protect, dust-proof, water-proof
Key Features
1). Ultra-low Splice loss
2). Mirror Less Design
3). Low weight , less than 2Kg with battery and bumper
4). Full automatic heater
5). 6 sec fast splicing
6). 7800mAH large Li battery pack
7). Compatable with bare fiber,tail fiber and indoor cable
8). Wind protect, dust-proof, water-proof
Specification
| Fiber Type | Single Fiber |
| Applicable Fibers | SM (single mode), MM (multi-mode), DS (dispersion), NZDS (non-zero dispersion), BIF/UBIF |
| Average Loss | 0.02dB(SM), 0.01dB(MM), 0.04dB(DS), 0.04dB(NZDS), 0.02dB (BIF/UBIF) |
| Return Loss | 9s / 6s (fast mode) |
| Typical splicing time | 250μm, 600μm, 900μm，2~3mm and 3.5mm |
| Compatiable cable | 250μm, 600μm, 900μm，2~3mm and 3.5mm |
| Fiber aligning | Core alignment and cladding alignment |
| Fiber Diameter | Cladding diameter:80～150μm |
| Coating diameter:100～1000μm | |
| Magnification | X or Y, magnify 360X |
| X + Y, magnify 180X | |
| Image display | High-performance 4.3 inch LCD |
| Tensile test | Standard 2N |
| Splicing mode | 100 (10 factoty pre-defined) |
| Heatig mode | 100 (4 factory pre-defined) |
| Heat-shrinkable tubing | 60mm, 45mm, 20mm or other types |
| Battery capacity | 7800mAH, 86.58WH |
| 350 times (splicing and heating) | |
| Charging time: about 3h (can be used while charging) | |
| Battery life | 1000 charging cycles |
| Electroce life | Typical 5,000 times, and replaceable |
| External interface | Mini USB |
| Result record | Maxmium10000 results |
| Heater Function | Automatic, support user defined heating mode, 0ºC ~ 300ºC adjustable |
| Power supply | Built-in lithium battery: 11.1V; AC/DC adapter input: AC 100-240V Output: DC 13.5V / 5.0A |
| Working Environment | Temperature: -20ºC ~ +55ºC (-4ºF~131ºF); Humidity: 95% RH (40°C non-condensing) Altitude: 0~5000m |

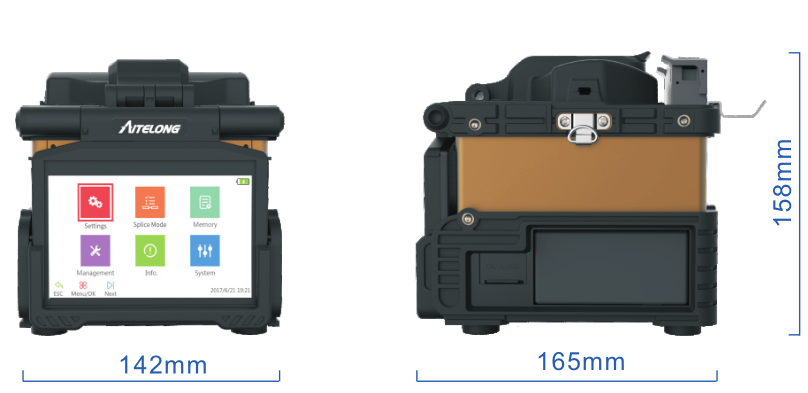

| Dimension | L×W×H＝166×146×159 (mm) |
| Weight | 1.6kg (without battery), 2.0kg (with battery) |
